Description:The ISL3232E, ISL4221E, and ISL4223E devices are 2. 7V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. They provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are PDAs, Palmtops, and hand-held products where the low operational power consumption and even lower standby power consumption are critical. Efficient on-chip charge pumps, cou
A good PCB layout for the ISL4221EIRZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a shielded cable and minimizing the length of the cable can help reduce EMI.
The ISL4221EIRZ requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, well-regulated power supply. The power sequencing requirements involve powering the device after the analog power supply is stable, and ensuring that the digital power supply is powered up after the analog power supply.
The ISL4221EIRZ has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Additionally, minimize the power consumption and reduce the operating frequency to reduce heat generation.
To troubleshoot common issues with the ISL4221EIRZ, check the power supply voltage, ensure proper signal termination, and verify the signal integrity. Also, check the device's configuration and programming, and ensure that the device is properly reset. If issues persist, consult the datasheet and application notes for further guidance.
The ISL4221EIRZ has built-in ESD protection, but it's still important to take precautions to prevent damage from electrostatic discharge. Handle the device by the body, avoid touching the pins, and use an anti-static wrist strap or mat when handling the device. Additionally, ensure that the PCB and components are properly grounded.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL4221EIRZ Overview

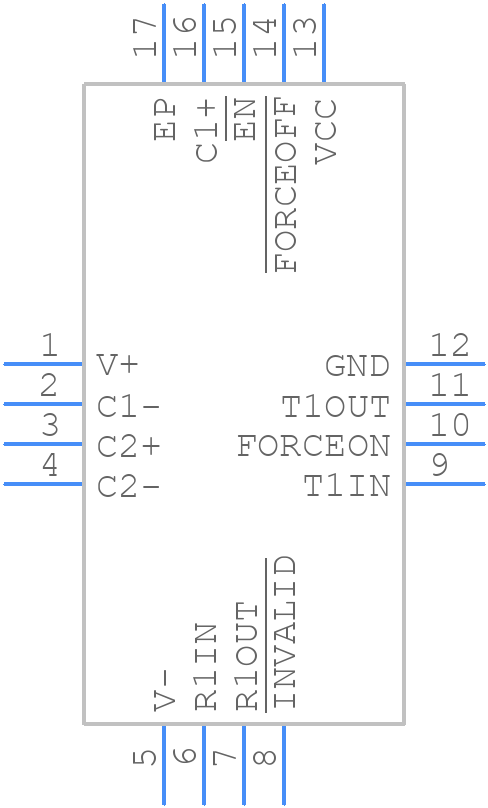

Use the download button to access the ISL4221EIRZ schematic symbol, PCB footprint, and 3D model.
