Description:The ISL3232E, ISL4221E, and ISL4223E devices are 2. 7V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. They provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are PDAs, Palmtops, and hand-held products where the low operational power consumption and even lower standby power consumption are critical. Efficient on-chip charge pumps, cou
A good PCB layout for the ISL4223EIRZ-TK involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the ISL4223EIRZ-TK, use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close as possible to the VCC pin. Additionally, use a 1uF to 10uF capacitor on the VCC pin to GND pin for decoupling. Make sure the power supply is clean and regulated, and use a ferrite bead or a small inductor in series with the power supply to filter out high-frequency noise.
The ISL4223EIRZ-TK is capable of achieving data rates up to 100Mbps, but the actual data rate achieved will depend on the specific application, PCB layout, and signal quality. To achieve the highest data rates, ensure that the PCB layout is optimized, and the signal lines are properly terminated and shielded.
To troubleshoot issues with the ISL4223EIRZ-TK, start by checking the power supply and decoupling, ensuring that the IC is properly powered and decoupled. Next, verify that the signal lines are properly terminated and shielded, and that the PCB layout is optimized. Use an oscilloscope to inspect the signal quality and look for signs of noise or distortion. If issues persist, consult the datasheet and application notes for guidance on troubleshooting and debugging.
The ISL4223EIRZ-TK is rated for operation over a temperature range of -40°C to +125°C. To ensure reliable operation over temperature, ensure that the IC is properly heatsinked, and that the PCB is designed to minimize thermal resistance. Use thermal vias and thermal pads to dissipate heat, and consider using a thermal interface material (TIM) to improve heat transfer between the IC and the heatsink.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL4223EIRZ-TK Overview

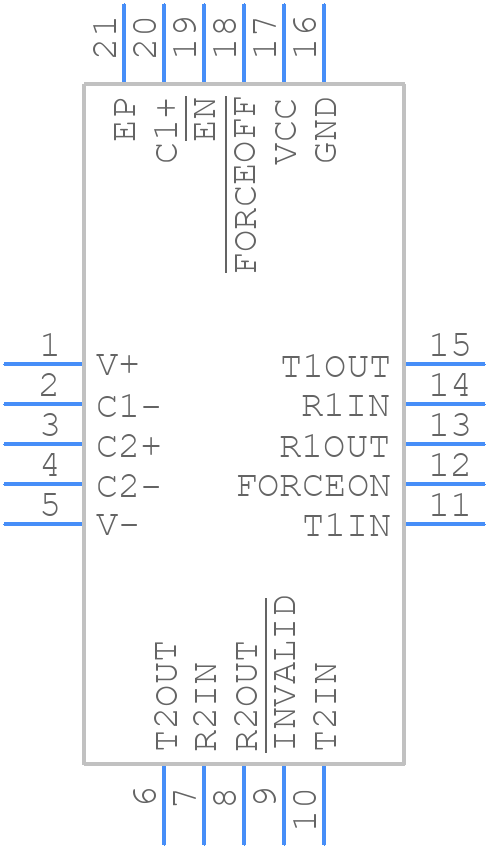

Use the download button to access the ISL4223EIRZ-TK schematic symbol, PCB footprint, and 3D model.
