Description:Intersil's ISL4241E, ISL4243E devices are 2. 7V to 5. 5V powered RS-232 transmitters/receivers which meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are PDAs, Palmtops, and notebook and laptop computers where the low operational, and even lower standby, power consumption is critical. Efficient on-chip charge pumps, c
A good PCB layout for the ISL4241EIRZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the ISL4241EIRZ-T, use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close as possible to the device's power pins. Additionally, use a 1uF to 10uF capacitor between the VCC and GND pins to filter out high-frequency noise.
The ISL4241EIRZ-T can support data rates up to 100Mbps, but the actual achievable data rate depends on the specific application, PCB layout, and cable quality. For optimal performance, it's recommended to use a high-quality cable and to follow the recommended PCB layout guidelines.
To troubleshoot issues with the ISL4241EIRZ-T, start by checking the power supply voltage and ensuring it's within the recommended range. Next, verify that the device is properly configured and that the clock signal is stable. Use an oscilloscope to check the signal integrity and look for any signs of noise or distortion. If the issue persists, consult the datasheet and application notes for further guidance.
Yes, the ISL4241EIRZ-T can be used in a hot-swap or hot-plug application, but it's essential to ensure that the device is properly powered down before the hot-swap or hot-plug event. Additionally, the device's power-on reset (POR) circuitry should be used to ensure a clean power-up sequence.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL4241EIRZ-T Overview

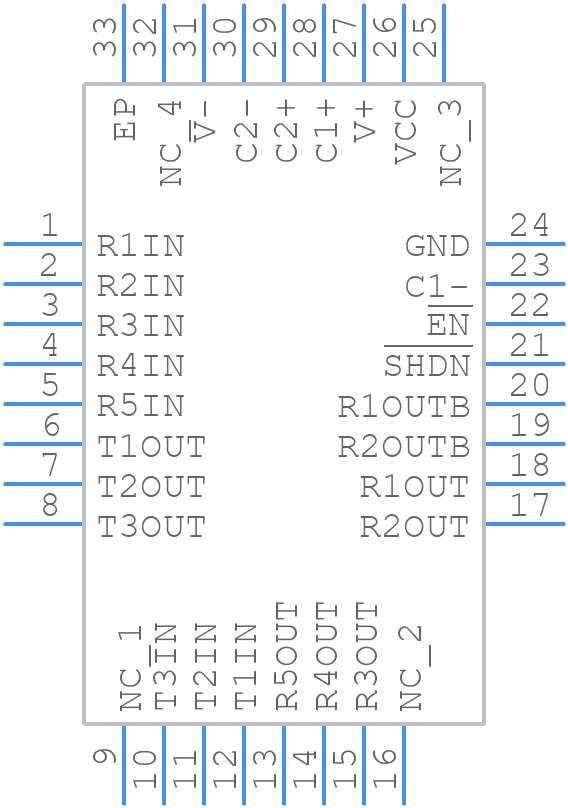

Use the download button to access the ISL4241EIRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL42,
or try a keyword search, such as Line Driver or Receivers
