Description:Intersil's ISL4241E, ISL4243E devices are 2. 7V to 5. 5V powered RS-232 transmitters/receivers which meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are PDAs, Palmtops, and notebook and laptop computers where the low operational, and even lower standby, power consumption is critical. Efficient on-chip charge pumps, c
The recommended PCB layout for optimal performance involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces between the device and the power supply.
To ensure reliable operation over the full temperature range, it's essential to follow the recommended operating conditions, including the power supply voltage, input voltage range, and output current. Additionally, it's recommended to use a thermal pad or heat sink to dissipate heat, especially in high-temperature applications.
The ISL4243EIRZ-T has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, ESD mat, or ESD bag, and avoiding direct contact with the device pins.
To troubleshoot common issues, start by verifying the power supply voltage, input voltage range, and output current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to measure the output voltage and current, and consult the datasheet for troubleshooting guidelines.
When using the ISL4243EIRZ-T in a high-reliability or safety-critical application, it's essential to follow the recommended operating conditions, and to ensure that the device is properly derated for temperature, voltage, and current. Additionally, consider using redundant or fault-tolerant designs, and consult with a qualified engineer or safety expert to ensure compliance with relevant safety standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL4243EIRZ-T Overview

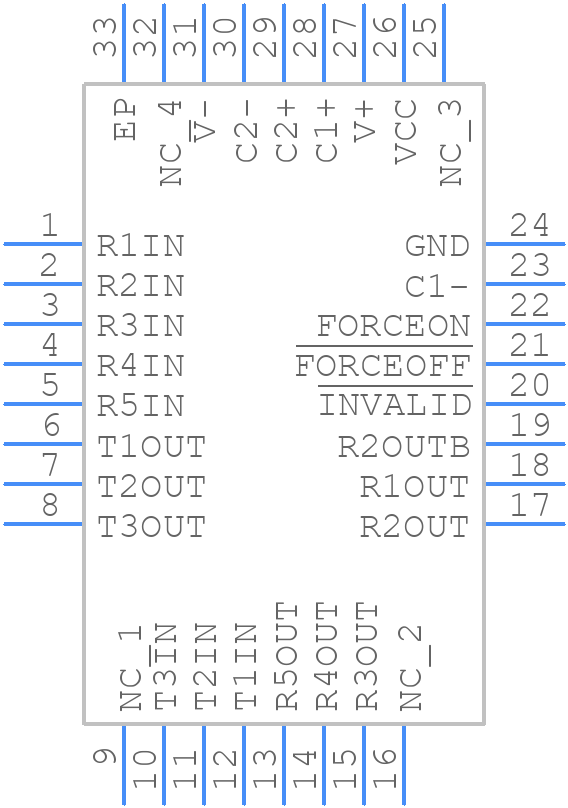

Use the download button to access the ISL4243EIRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL42,
or try a keyword search, such as Line Driver or Receivers
