Description:The Intersil ISL4238E, ISL4244E and ISL4245E devices are 2. 7V to 5. 5V powered RS-232 transmitters/receivers which meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are PDAs, Palmtops, and notebook and laptop computers where the low operational, and even lower standby power consumption is critical. Efficient on-chip c
A good PCB layout for the ISL4244EIRZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device close to the power supply and use a low-ESR capacitor for the VCC pin.
To ensure proper power-up and initialization of the ISL4244EIRZ, make sure to follow the recommended power-up sequence, which involves applying VCC before applying the input signal. Also, ensure that the VCC pin is properly decoupled with a capacitor and that the device is reset properly after power-up.
When selecting external capacitors for the ISL4244EIRZ, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. A low-ESR capacitor with a capacitance value between 1uF to 10uF and a voltage rating of at least 2.5V is recommended for the VCC pin. For the output capacitors, a capacitance value between 10uF to 100uF and a voltage rating of at least 2.5V is recommended.
To troubleshoot issues with the ISL4244EIRZ, start by verifying the power supply voltage, input signal, and output load. Check for proper PCB layout, decoupling, and component selection. Use an oscilloscope to measure the output voltage and input signal, and check for any signs of oscillation or noise. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
The ISL4244EIRZ has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, ensure good thermal conduction between the device and the PCB, use a heat sink if necessary, and avoid overheating the device. Also, consider the thermal derating of the device and ensure that the maximum power dissipation is not exceeded.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL4244EIRZ Overview

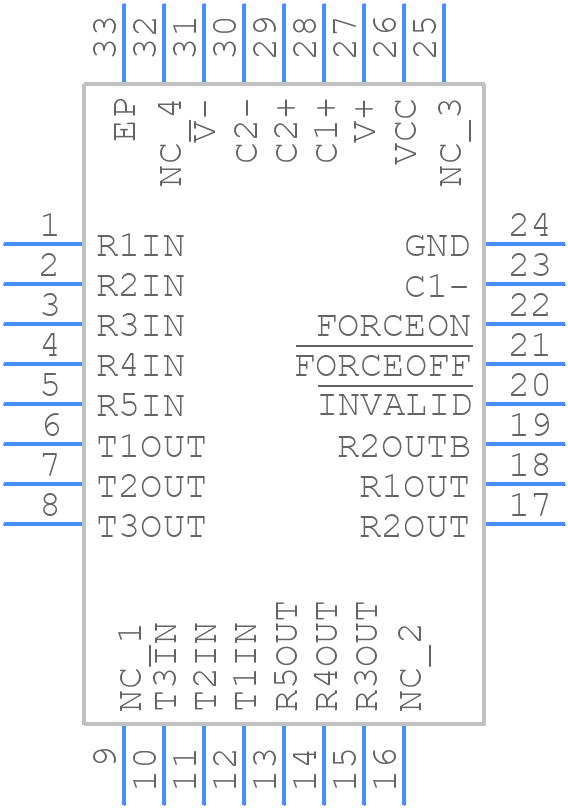

Use the download button to access the ISL4244EIRZ schematic symbol, PCB footprint, and 3D model.
