ISL43144IVZ - Renesas Electronics

Description: The Intersil ISL43143-ISL43145 devices are CMOS, precision, quad SPST analog switches designed to operate from a single +2V to +12V supply or from a ±2V to ±6V supply. Targeted applications include battery powered equipment that benefit from the devices' low power consumption (

Download ISL43144IVZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

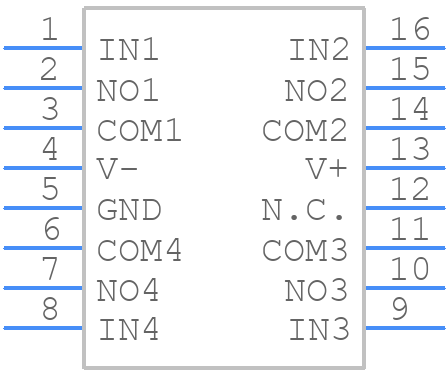

Symbol
ISL43144IVZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL43144IVZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 16 Ld TSSOP
click to zoom
3D Models
ISL43144IVZ - Renesas Electronics - 3D model - Small Outline Packages - 16 Ld TSSOP
click to zoom

ISL43144IVZ Details

  • Manufacturer Part Number:

    ISL43144IVZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    M16.173

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Min (Vsup):

    -2 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    71 dB

  • On-state Resistance Match-Nom:

    0.5 Ω

  • On-state Resistance-Max (Ron):

    25 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    55 ns

  • Switch-on Time-Max:

    75 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ISL43144IVZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL43144IVZ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be selected based on the specific application requirements, and the input capacitor should be chosen to ensure a stable input voltage. It's also recommended to add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
  • The ISL43144IVZ is rated for operation over a temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • Yes, the ISL43144IVZ is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive applications. However, it's essential to follow the recommended design guidelines and testing procedures to ensure the device meets the specific application requirements.
  • To troubleshoot issues with the ISL43144IVZ, start by verifying the input voltage, output voltage, and current consumption. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to check for any oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for guidance, or contact Renesas Electronics Corporation's technical support team.
