Description:The Intersil ISL43210A device is a precision, bidirectional, single SPDT analog switch designed to operate from a single +2. 7V to +15V supply. Targeted applications include applications that require a +15V single supply such as 3D TV/Eyeware products and single supply +3. 0V/+5V battery powered equipment that benefit from the devices low power consumption (5µW), low leakage currents (10nA max), and fast switching speeds (tON = 28ns, tOFF = 20ns). Cell phones, for example, often face ASIC functionality limi
A good PCB layout for the ISL43210AIHZ-T7A involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure proper power-up and power-down of the ISL43210AIHZ-T7A, follow the recommended power-up sequence: VCC, then VDD, then EN. For power-down, follow the reverse sequence. Also, ensure that the input voltage ramps up and down slowly to prevent latch-up.
The ISL43210AIHZ-T7A has a maximum junction temperature of 150°C. To ensure reliable operation, keep the device temperature below 125°C. Use thermal vias and a heat sink if necessary, and ensure good airflow around the device.
To troubleshoot issues with the ISL43210AIHZ-T7A, start by checking the power supply voltages, then verify the input and output signals using an oscilloscope. Check for proper PCB layout, decoupling, and termination. Consult the datasheet and application notes for specific troubleshooting guidelines.
The ISL43210AIHZ-T7A has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is properly grounded during handling.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL43210AIHZ-T7A Overview

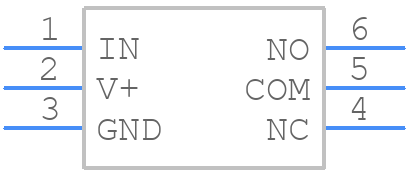

Use the download button to access the ISL43210AIHZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL43,
or try a keyword search, such as Multiplexers or Switches
