ISL45041IRZ-T - Renesas Electronics

Description: The VCOM voltage of an LCD panel needs to be adjusted to remove flicker. This part provides a digital interface to control the sink current output that attaches to an external voltage divider. The increase in output sink current lowers the voltage on the external divider, which is applied to an external VCOM buffer amplifier. The desired VCOM setting is loaded from an external source via a standard 2-wire I2C serial interface. At power-up, the part automatically comes up at the last programmed EEPROM settin

Download ISL45041IRZ-T Model

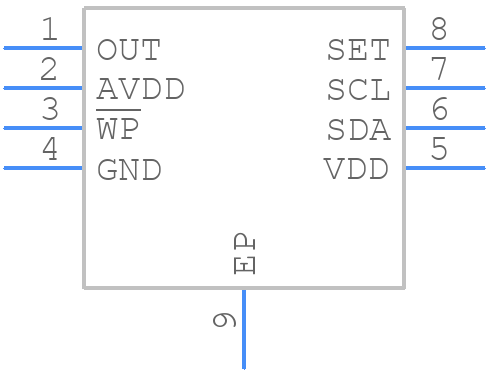

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL45041IRZ-T - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - ISL45041IRZ-T
click to zoom
3D Models
ISL45041IRZ-T - Renesas Electronics  - 3D model - Small Outline No-lead - ISL45041IRZ-T
click to zoom

ISL45041IRZ-T Details

  • Manufacturer Part Number:

    ISL45041IRZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TDFN

  • Pin Count:

    8

  • Manufacturer Package Code:

    L8.3X3A

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

ISL45041IRZ-T Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability and prevent oscillations in the output voltage, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be selected based on the output voltage and current requirements, and the input capacitor should be selected based on the input voltage and current requirements.
  • The maximum junction temperature that the ISL45041IRZ-T can withstand is 150°C. However, it's recommended to operate the device at a junction temperature below 125°C to ensure reliable operation and to prevent thermal shutdown.
  • The power dissipation of the ISL45041IRZ-T can be calculated using the following formula: Pd = (Vin x Iin) - (Vout x Iout), where Vin is the input voltage, Iin is the input current, Vout is the output voltage, and Iout is the output current. The calculated power dissipation should be within the recommended maximum power dissipation rating of the device.
  • The recommended input capacitor type is a ceramic capacitor with a value of 10uF to 22uF. The input capacitor should be selected based on the input voltage and current requirements, and it should be placed close to the device to minimize noise and ripple.
