ISL51002CQZ-165 - Renesas Electronics

Description: The ISL51002 3-channel, 10-bit analog front-end (AFE) contains all the functionality needed to digitize analog YPbPr video from HDTV tuners, set-top boxes, SD and HD DVDs, as well as RGB graphics signals from personal computers and workstations. The fourth-generation analog design delivers 10-bit performance and a 165MSPS maximum conversion rate supporting resolutions up to 1080p/UXGA at 60Hz. The front end's programmable input bandwidth ensures sharp, low noise images at all resolutions. To accelerate and

Download ISL51002CQZ-165 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ISL51002CQZ-165 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

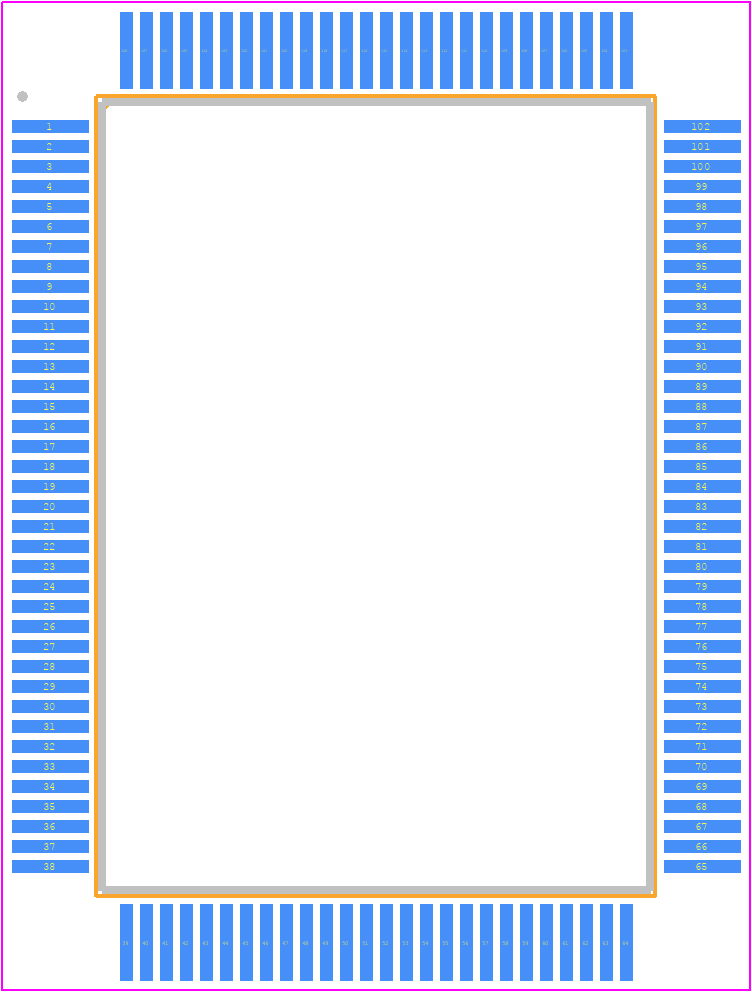

ISL51002CQZ-165 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - MDP0055
click to zoom
3D Models
ISL51002CQZ-165 - Renesas Electronics - 3D model - Quad Flat Packages - MDP0055
click to zoom

ISL51002CQZ-165 Details

  • Manufacturer Part Number:

    ISL51002CQZ-165

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MQFP

  • Pin Count:

    128

  • Manufacturer Package Code:

    MDP0055

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

ISL51002CQZ-165 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL51002CQZ-165 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces to reduce parasitic inductance and capacitance.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to choose a capacitor with a low equivalent series resistance (ESR) to minimize voltage ripple.
  • The maximum ambient temperature range for the ISL51002CQZ-165 is -40°C to +125°C, but the device can operate up to 150°C with derating.
  • Yes, the ISL51002CQZ-165 is suitable for high-reliability applications, as it is built with a robust design and has undergone rigorous testing to ensure its reliability and performance.
  • To troubleshoot issues with the ISL51002CQZ-165, check the input voltage, output voltage, and output current to ensure they are within the recommended operating ranges. Also, verify that the device is properly soldered and that the PCB layout is correct.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL51002CQZ-165 Overview

Use the download button to access the ISL51002CQZ-165 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL51, or try a keyword search, such as Other Consumer ICs
