Description:The ISL54059 device is a low ON-resistance, low voltage, bidirectional, dual single-pole/double-throw (SPDT) analog switch. It is designed to operate from a single +1.8V to +6.5V supply and pass signals that swing down to 6.5V below the positive supply rail. Targeted applications include battery-powered equipment that benefit from low rON (0.56Ω), low power consumption (8nA) and fast switching speeds (tON = 55ns, tOFF = 18ns). The digital inputs are 1.8V logic-compatible up to a +3V supply. The ISL54059 is
A good PCB layout for the ISL54059IRTZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the power supply and use a low-ESR capacitor for decoupling.
To ensure proper power-on and power-off sequencing, it's recommended to follow the power-up and power-down sequences outlined in the datasheet. This typically involves powering up the VCC pin first, followed by the VLOGIC pin, and then the analog power pins. During power-down, the sequence should be reversed.
The ISL54059IRTZ has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device.
To troubleshoot issues with the ISL54059IRTZ, start by verifying the power supply voltages, checking for proper signal routing and termination, and ensuring that the device is properly configured. Use an oscilloscope to monitor the signals and look for any signs of distortion, noise, or oscillation. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
The ISL54059IRTZ has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, anti-static bags, and ESD-safe work surfaces. Additionally, ensure that the device is properly grounded during handling and testing.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL54059IRTZ Overview

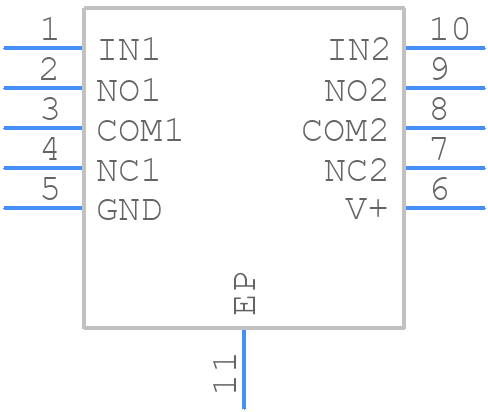

Use the download button to access the ISL54059IRTZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL54,
or try a keyword search, such as Multiplexers or Switches
