ISL54062IRTZ - Renesas Electronics

Description: The ISL54062 device is a low ON-resistance, low voltage, bidirectional, dual single-pole/double-throw (SPDT) analog switch. It is designed to operate from a single +1.8V to +6.5V supply and pass signals that swing down to 6.5V below the positive supply rail. Targeted applications include battery-powered equipment that benefit from low rON (0.56Ω), low power consumption (20nA) and fast switching speeds (tON = 55ns, tOFF = 18ns). The digital inputs are 1.8V logic-compatible up to a +3V supply. The ISL54062 al

Download ISL54062IRTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

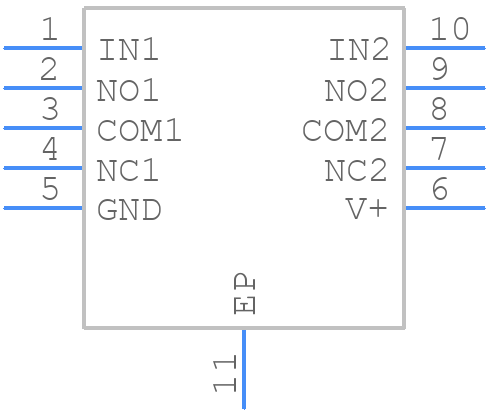

ISL54062IRTZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL54062IRTZ - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - L10.3x3A
click to zoom
3D Models
ISL54062IRTZ - Renesas Electronics - 3D model - Small Outline No-lead - L10.3x3A
click to zoom

ISL54062IRTZ Details

  • Manufacturer Part Number:

    ISL54062IRTZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TDFN

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    L10.3X3A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-10-11

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance Match-Nom:

    0.01 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL54062IRTZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The ISL54062IRTZ requires a specific power-up sequence to ensure proper initialization. The recommended power-up sequence is to apply VCC first, followed by VLOGIC, and then the analog input signal. Additionally, the device requires a minimum of 1ms power-up time to ensure proper initialization.
  • The maximum allowable capacitance on the analog input pins is 10nF. Exceeding this value may affect the device's performance and accuracy. It's recommended to keep the input capacitance as low as possible to minimize signal attenuation and distortion.
  • The ISL54062IRTZ has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding straps, and ionizers to minimize the risk of ESD damage.
  • The thermal resistance of the ISL54062IRTZ package is 45°C/W (junction-to-ambient) and 10°C/W (junction-to-case). This information is useful for thermal management and heat sink design.
