Description:The ISL54100A is a high-performance transition minimized differential signaling (TMDS) timing regenerator and multiplexer. The receiver contains a programmable equalizer and a clock data recovery (CDR) function for each of the three TMDS pairs in an HDMI or DVI signal. The TMDS data outputs of the ISL54100A are regenerated and perfectly aligned to the regenerated TMDS clock signal, creating an extremely clean, low-jitter DVI/HDMI signal that can be easily decoded by any TMDS receiver. The ISL54100A's design
The recommended PCB layout for the ISL54100ACQZ involves placing the device close to the signal sources, using short traces, and minimizing the loop area of the signal paths to reduce EMI. Additionally, a solid ground plane and a low-impedance power supply are recommended to ensure stable operation.
The ISL54100ACQZ requires a single 3.3V power supply, and it's recommended to power the device after the analog and digital supplies are stable. The power sequencing requirements are not critical, but it's recommended to power the device after the analog supply is stable to ensure proper operation.
The ISL54100ACQZ can support data rates up to 100Mbps, making it suitable for high-speed applications such as HDMI and DisplayPort.
The ISL54100ACQZ can be configured for different applications by setting the appropriate pin configurations and register settings. For example, for HDMI applications, the device can be configured in HDMI mode by setting the HDMI_EN pin high and configuring the registers for HDMI protocol.
The ISL54100ACQZ has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for reliable operation. Thermal management considerations include providing adequate heat sinking, using thermal vias, and ensuring good airflow around the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL54100ACQZ Overview

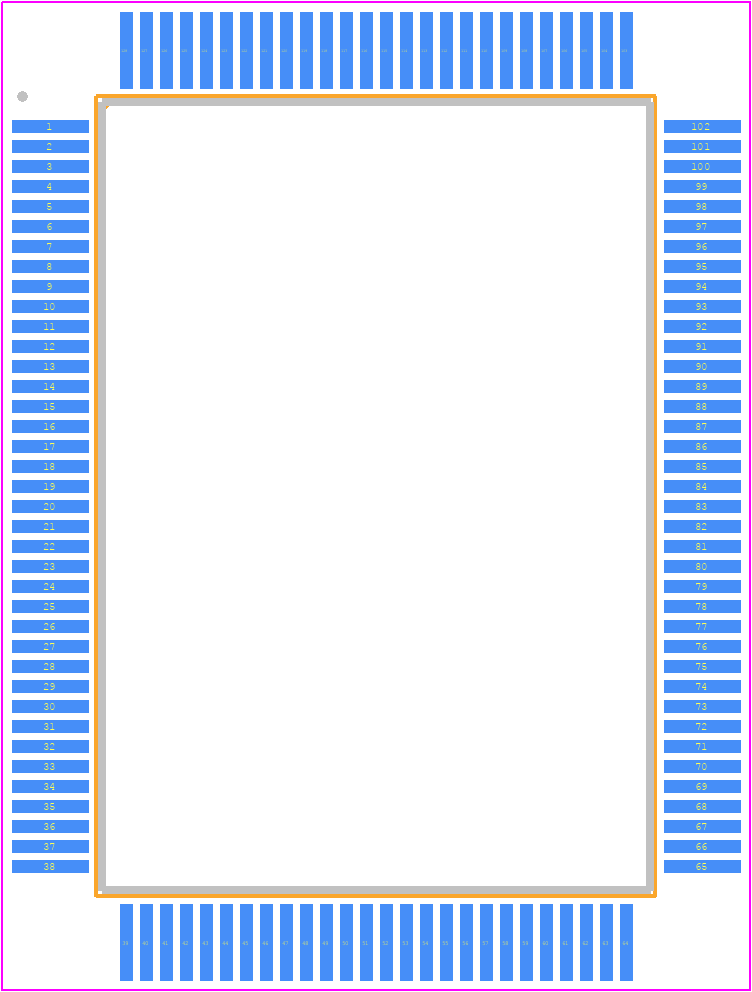

Use the download button to access the ISL54100ACQZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL54,
or try a keyword search, such as Other Consumer ICs
