ISL54101ACQZ - Renesas Electronics

Description: The ISL54100A, ISL54101A, ISL54102A are high-performance TMDS (Transition Minimized Differential Signaling) timing regenerators and multiplexers. The receiver contains a programmable equalizer and a clock data recovery (CDR) function for each of the 3 TMDS pairs in an HDMI or DVI signal. The TMDS data outputs of the ISL5410xA are regenerated and perfectly aligned to the regenerated TMDS clock signal, creating an extremely clean, low-jitter DVI/HDMI signal that can be easily decoded by any TMDS receiver. The

Download ISL54101ACQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

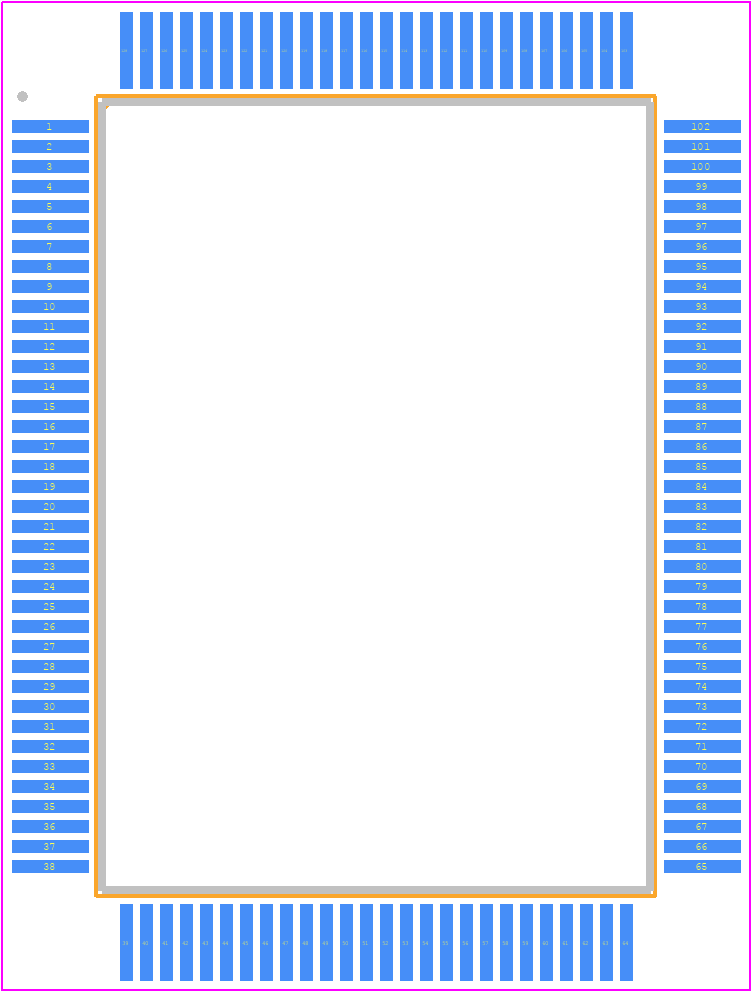

ISL54101ACQZ - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - MDP0055
click to zoom
3D Models
ISL54101ACQZ - Renesas Electronics  - 3D model - Quad Flat Packages - MDP0055
click to zoom

ISL54101ACQZ Details

  • Manufacturer Part Number:

    ISL54101ACQZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MQFP

  • Pin Count:

    128

  • Manufacturer Package Code:

    MDP0055

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-10-12

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

ISL54101ACQZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL54101ACQZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to keep the signal traces short and direct.
  • The ISL54101ACQZ requires a single 3.3V power supply, and it's recommended to use a low-dropout linear regulator (LDO) or a switching regulator with a low output voltage ripple. The power sequencing requirement is to power up the VCC pin before the EN pin, and to ensure that the VCC pin is stable before enabling the device.
  • The ISL54101ACQZ can support data rates up to 100Mbps, but the actual data rate achievable depends on the system design, PCB layout, and signal quality. The device's bandwidth, signal attenuation, and jitter tolerance are some of the limitations that can affect the maximum data rate.
  • To troubleshoot issues with the ISL54101ACQZ, start by checking the power supply and ensuring that it's within the recommended specifications. Then, verify that the device is properly configured and that the signal sources are correct. Use oscilloscopes and logic analyzers to debug the signal integrity and timing issues. Finally, consult the datasheet and application notes for guidance on specific troubleshooting techniques.
  • The ISL54101ACQZ has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for reliable operation. To ensure reliable operation at high temperatures, use a heat sink or a thermal pad, and ensure good airflow around the device. Additionally, reduce the power consumption by optimizing the system design and using power-saving modes.
