Description:The Intersil ISL54216 is a single supply dual SP3T analog switch that operates from a single supply in the range of 2. 7V to 4. 6V. It was designed to multiplex between three different differential data sources, allowing the multiplexing of USB 2. 0 high speed and/or UART data signals through a common headphone connector in Personal Media Players and other portable battery powered devices. The switch channels have very low ON capacitance and high bandwidth to pass USB high speed signals (480Mbps) with minim
A good PCB layout for the ISL54216IRTZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
To ensure reliable operation over the entire operating temperature range, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal hotspots. Additionally, ensure that the device is operated within its specified voltage and current ratings.
Operating the ISL54216IRTZ-T outside the recommended voltage range may affect its performance, reliability, and power consumption. Using a lower voltage supply may result in reduced switching frequency, increased power consumption, and decreased signal integrity. Using a higher voltage supply may cause excessive power consumption, increased heat generation, and potentially damage the device.
To troubleshoot issues with the switching frequency or signal integrity, start by verifying the device's power supply, clock signal, and input/output connections. Check for any signs of noise, ringing, or distortion on the signals, and ensure that the device is properly terminated. Use an oscilloscope to visualize the signals and identify any anomalies. If the issue persists, consult the datasheet and application notes for guidance or contact Renesas support.
Yes, the ISL54216IRTZ-T is a high-frequency device that can generate electromagnetic interference (EMI). To minimize EMI, use proper shielding, grounding, and layout techniques. Ensure that the device is placed in a shielded enclosure, and use EMI filters or chokes on the input/output lines. Additionally, follow the recommended PCB layout and routing guidelines to minimize radiation and coupling.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL54216IRTZ-T Overview

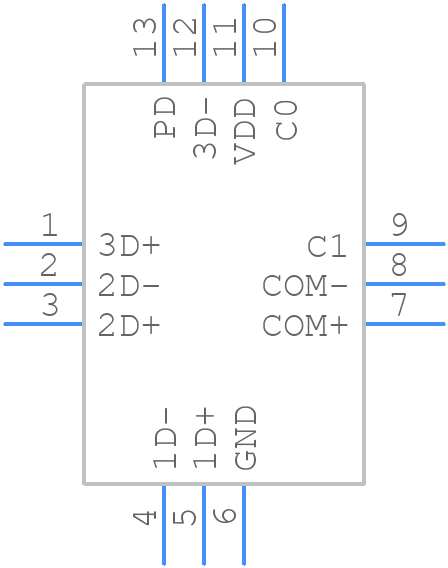

Use the download button to access the ISL54216IRTZ-T schematic symbol and PCB footprint.
