ISL54216IRTZ - Renesas Electronics

Description: The Intersil ISL54216 is a single supply dual SP3T analog switch that operates from a single supply in the range of 2. 7V to 4. 6V. It was designed to multiplex between three different differential data sources, allowing the multiplexing of USB 2. 0 high speed and/or UART data signals through a common headphone connector in Personal Media Players and other portable battery powered devices. The switch channels have very low ON capacitance and high bandwidth to pass USB high speed signals (480Mbps) with minim

Download ISL54216IRTZ Model

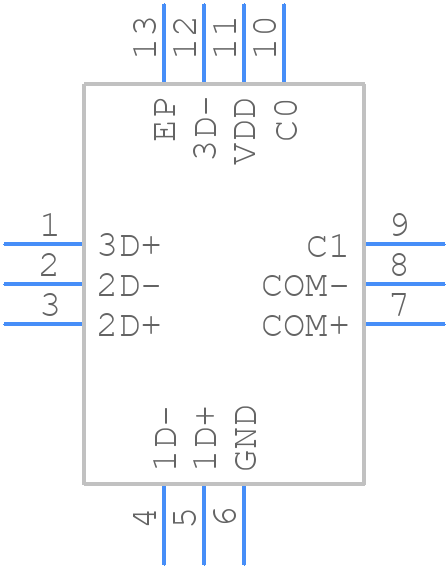

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL54216IRTZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 12 Ld Thin µTQFN (Tape and Reel)
click to zoom
3D Models
ISL54216IRTZ - Renesas Electronics  - 3D model - Quad Flat No-Lead - 12 Ld Thin µTQFN (Tape and Reel)
click to zoom

ISL54216IRTZ Details

  • Manufacturer Part Number:

    ISL54216IRTZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFN

  • Package Description:

    TQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    L12.3X3A

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-10-16

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    S-PQCC-N12

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NC

  • Number of Channels:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    12

  • Off-state Isolation-Nom:

    32 dB

  • On-state Resistance Match-Nom:

    0.07 Ω

  • On-state Resistance-Max (Ron):

    15 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.04 A

  • Supply Current-Max (Isup):

    0.015 mA

  • Supply Voltage-Max (Vsup):

    4.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    125 ns

  • Switch-on Time-Max:

    125 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Pure Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL54216IRTZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the signal traces.
  • To ensure reliable operation over the entire operating temperature range, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, it's recommended to derate the device's power consumption at higher temperatures.
  • Operating the device outside the recommended supply voltage range may affect its performance, power consumption, and reliability. Using a lower supply voltage may reduce the device's speed and increase its power consumption, while using a higher supply voltage may increase the device's power consumption and reduce its reliability.
  • To troubleshoot issues with the device's analog switches, start by verifying the device's power supply and clock signals. Then, check the switch control signals and ensure they are properly configured. Use a logic analyzer or oscilloscope to monitor the switch signals and verify they are switching correctly. Finally, check for any signs of overheating or electrical overstress.
  • The ISL54216IRTZ has built-in ESD protection diodes on all pins, which can withstand up to 2kV of ESD per the Human Body Model (HBM). Additionally, the device has latch-up prevention circuitry to prevent damage from excessive currents. However, it's still recommended to follow proper ESD handling and PCB design practices to prevent damage.
