ISL54220IRTZ - Renesas Electronics

Description: The ISL54220 is a single supply dual 2:1 multiplexer that can operate from a single 2.7V to 5.5V supply. It contains two Single Pole/Double Throw (SPDT) switches configured as a DPDT. The part was designed for switching or routing of USB High-Speed signals and/or USB Full-Speed signals in portable battery-powered products. The 6Ω switches can swing rail-to-rail and were specifically designed to pass USB Full-Speed data signals that range from 0V to 3.3V and USB High-Speed data signals that range from 0V to

Download ISL54220IRTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

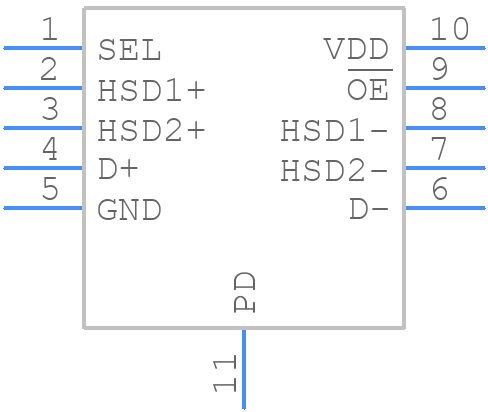

Symbol
ISL54220IRTZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL54220IRTZ - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - L10.3x3A 10 LEAD THIN DUAL FLAT NO-LEAD PLASTIC PACKAGE
click to zoom
3D Models
ISL54220IRTZ - Renesas Electronics - 3D model - Small Outline No-lead - L10.3x3A 10 LEAD THIN DUAL FLAT NO-LEAD PLASTIC PACKAGE
click to zoom

ISL54220IRTZ Details

  • Manufacturer Part Number:

    ISL54220IRTZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TDFN

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    L10.3X3A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPDT

  • Input Voltage-Max:

    5.5 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    32 dB

  • On-state Resistance Match-Nom:

    0.117 Ω

  • On-state Resistance-Max (Ron):

    8 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.85 mm

  • Signal Current-Max:

    0.04 A

  • Supply Current-Max (Isup):

    0.012 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL54220IRTZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ISL54220IRTZ involves placing the device close to the signal sources, using short and wide traces for the signal paths, and separating the analog and digital grounds. Additionally, it's recommended to use a solid ground plane and to decouple the power supply pins with capacitors.
  • The ISL54220IRTZ requires a single 1.8V to 3.6V power supply. It's recommended to power the device with a clean and stable power source, and to ensure that the power supply is applied before the signal inputs. The power sequencing requirements are not critical, but it's recommended to power the device before applying signals to the input pins.
  • The ISL54220IRTZ can support data rates up to 100Mbps, making it suitable for high-speed applications such as USB 2.0 and HDMI.
  • The ISL54220IRTZ can be configured for different switch configurations using the control pins (EN, SEL, and OE). The device can be configured as a 2:1 multiplexer, a 1:2 demultiplexer, or a SPDT switch. The configuration is determined by the logic levels applied to the control pins.
  • The typical on-resistance of the ISL54220IRTZ is around 5 ohms. The on-resistance can affect the signal integrity by introducing signal attenuation and distortion. However, the device is designed to minimize the on-resistance and ensure signal integrity in high-speed applications.
