Description:The Intersil ISL54227 is a single supply, dual SPST (Single Pole/Single Throw) switch that is configured as a DPST. It can operate from a single 2. 7V to 5. 25V supply. The part was designed for switching or isolating a USB high-speed source or a USB high-speed and full-speed source in portable battery powered products. The 3. 5ΩSPST switches were specifically designed to pass USB full speed and USB high speed data signals. They have high bandwidth and low capacitance to pass USB high speed data signals wit
A good PCB layout for the ISL54227IRTZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to minimize the length of the traces between the device and the battery.
To ensure proper power-up and configuration, follow the recommended power-up sequence in the datasheet, and make sure to tie the EN pin high to enable the device. Also, configure the device's registers according to the application requirements, and verify the configuration using the device's status registers.
The ISL54227IRTZ-T has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the device away from heat sources. Additionally, follow the recommended PCB layout and thermal design guidelines to minimize thermal resistance.
To troubleshoot issues, start by verifying the power supply and configuration registers. Use a logic analyzer or oscilloscope to monitor the device's signals and verify that they are within the specified ranges. Check the device's status registers for error flags, and consult the datasheet and application notes for troubleshooting guidelines.
Yes, the ISL54227IRTZ-T is a sensitive device and requires proper ESD protection during handling and assembly. Follow standard ESD protection procedures, such as using an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL54227IRTZ-T Overview

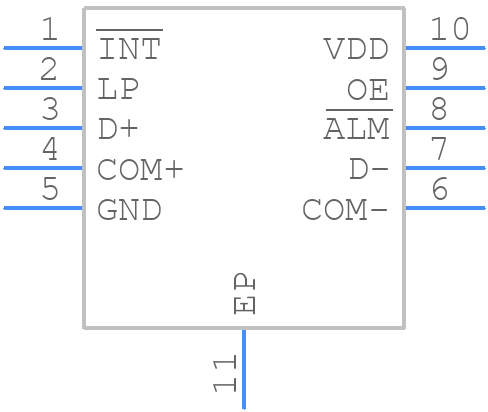

Use the download button to access the ISL54227IRTZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL54,
or try a keyword search, such as Multiplexers or Switches
