Description:The Intersil ISL54233 is a single supply differential 3 to 1 multiplexer that operates from a single supply in the range of 2. 7V to 4. 6V. It was designed to multiplex between three different differential data sources, allowing the multiplexing of USB 2. 0 high speed data signals, UART data signals and digital video through a common headphone connector in Personal Media Players and other portable battery powered devices. The switch channels have low ON capacitance and high bandwidth (1. 6GHz) to pass USB h
A good PCB layout for the ISL54233IRTZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to place the device close to the signal sources and loads, and to use a common mode filter to reduce EMI.
The ISL54233IRTZ requires a single 1.8V to 3.6V power supply. It's recommended to power the device with a clean, low-noise power source, and to ensure that the power supply is stable before applying signals to the device. The power sequencing requirements are not critical, but it's recommended to power up the device before applying signals to the analog inputs.
The ISL54233IRTZ can support data rates up to 100 Mbps, but the actual data rate achievable depends on the specific application, PCB layout, and signal quality. It's recommended to consult the datasheet and application notes for more information on achieving high-speed data transmission.
To troubleshoot issues with the ISL54233IRTZ, start by checking the power supply and ensuring it's stable and within the recommended range. Then, check the signal integrity by measuring the signal levels and frequencies at the input and output of the device. Use an oscilloscope to visualize the signals and identify any anomalies. Consult the datasheet and application notes for more troubleshooting tips and guidelines.
Yes, the ISL54233IRTZ has a maximum junction temperature of 125°C. To ensure reliable operation, it's recommended to keep the device temperature below 85°C. Use thermal vias and a heat sink if necessary, and ensure good airflow around the device. Consult the datasheet for more information on thermal management.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL54233IRTZ Overview

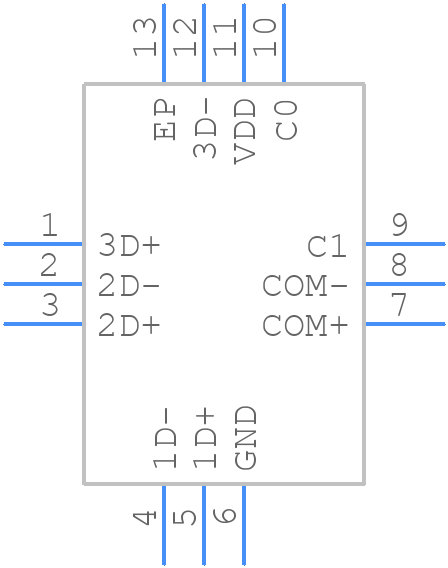

Use the download button to access the ISL54233IRTZ schematic symbol, PCB footprint, and 3D model.
