Description:The ISL55001 is a high speed, low power, low cost monolithic operational amplifier. The ISL55001 is unity-gain stable and features a 300V/µs slew rate and 220MHz bandwidth while requiring only 9mA of supply current. The power supply operating range of the ISL55001 is from ±15V down to ±2. 5V. For single-supply operation, the ISL55001 operates from 30V down to 5V. The ISL55001 also features an extremely wide output voltage swing of -12. 75V/+13. 4V with VS = ±15V and RL = 1kΩ. At a gain of +1, the ISL55001 h
A good PCB layout for the ISL55001IBZ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be selected based on the specific application requirements, and the input capacitor should be chosen to ensure a stable input impedance. It's also crucial to consider the power supply rejection ratio (PSRR) and the output voltage noise tolerance.
The ISL55001IBZ has a thermal shutdown feature that activates when the junction temperature exceeds 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and airflow. The device's thermal resistance (θJA) is 45°C/W, and the maximum allowed junction temperature is 150°C.
To troubleshoot issues with the ISL55001IBZ, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to check for any unusual voltage or current waveforms, and consult the datasheet for specific troubleshooting guidelines.
To minimize EMI and EMC issues, it's essential to follow proper PCB layout and design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as needed. Additionally, ensure that the device is properly decoupled, and consider using EMI filters or common-mode chokes to reduce emissions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL55001IBZ Overview

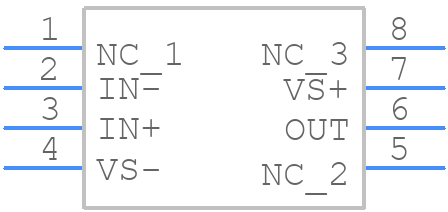

Use the download button to access the ISL55001IBZ schematic symbol, PCB footprint, and 3D model.
