ISL55002IBZ - Renesas Electronics

Description: The ISL55002 is a high speed, low power, low cost monolithic operational amplifier. The ISL55002 is unity-gain stable and features a 300V/µs slew rate and 200MHz bandwidth while requiring only 8. 5mA of supply current per amplifier. The power supply operating range of the ISL55002 is from ±15V down to ±2. 5V. For single-supply operation, the ISL55002 operates from 30V down to 5V. The ISL55002 also features an extremely wide output voltage swing of -12. 75V/+13. 4V with VS = ±15V and RL = 1kΩ. At a gain of +

Download ISL55002IBZ Model

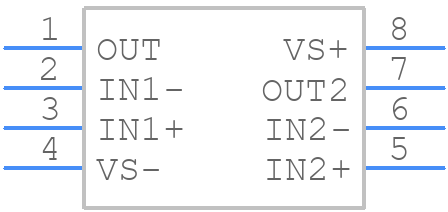

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL55002IBZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8LEAD SO
click to zoom
3D Models
ISL55002IBZ - Renesas Electronics  - 3D model - Small Outline Packages - 8LEAD SO
click to zoom

ISL55002IBZ Details

  • Manufacturer Part Number:

    ISL55002IBZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15E

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    3.5 µA

  • Bandwidth (3dB)-Nom:

    17000 MHz

  • Bias Current-Max (IIB) @25C:

    0.6 µA

  • Common-mode Reject Ratio-Min:

    75 dB

  • Common-mode Reject Ratio-Nom:

    112 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    2 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9022 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -21 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.7272 mm

  • Slew Rate-Min:

    260 V/us

  • Slew Rate-Nom:

    0.4 V/us

  • Supply Current-Max:

    0.7 mA

  • Supply Voltage Limit-Max:

    16.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1200

  • Voltage Gain-Min:

    5623

  • Wideband:

    YES

  • Width:

    3.9116 mm

ISL55002IBZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL55002IBZ involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be selected based on the output voltage and current requirements. It's also crucial to ensure that the input voltage is within the recommended range and that the device is operated within its specified temperature range.
  • The ISL55002IBZ has a thermal shutdown feature that protects the device from overheating. To ensure reliable operation, it's essential to provide adequate heat sinking and airflow around the device. The device's thermal resistance (θJA) should be considered when designing the PCB and thermal management system.
  • To troubleshoot issues with the ISL55002IBZ, start by verifying that the input voltage and current are within the recommended range. Check the output voltage and current to ensure they are within the specified range. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for guidance.
  • To minimize EMI, it's essential to follow good PCB layout practices, such as keeping the input and output traces short and away from each other, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, consider using EMI filters or shielding to reduce electromagnetic radiation.
