Description:The ISL55016 is a high performance gain block which can match a 75Ω single-ended source to a 100Ω differential load. This feature makes the ISL55016 ideal for a wide range of general-purpose applications such as Satellite TV. The ISL55016 can be used as single-ended to differential converter and eliminates the need for an external balun structure.
The recommended PCB layout for optimal performance can be found in the ISL55016 Evaluation Board User Manual (available on the Renesas website). It includes guidelines for component placement, routing, and thermal management.
To ensure reliable operation in high-temperature environments, follow the thermal management guidelines in the datasheet, and consider using a heat sink or thermal interface material to reduce the junction temperature. Additionally, ensure that the device is operated within the recommended operating temperature range.
The recommended input and output capacitors for the ISL55016 are ceramic capacitors with a value of 10uF to 22uF, and an X7R or X5R dielectric. The datasheet provides more detailed information on capacitor selection.
To troubleshoot issues with the device, start by verifying that the input and output voltages are within the recommended range, and that the device is properly configured. Check the PCB layout for any signs of noise or interference, and ensure that the device is properly decoupled. If the issue persists, consult the ISL55016 Application Note (available on the Renesas website) for troubleshooting guidelines.
The recommended method for powering up and down the device is to use a soft-start circuit to gradually ramp up the input voltage, and to ensure that the input voltage is stable before enabling the device. The datasheet provides more detailed information on power-up and power-down sequencing.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL55016IRTZ-T7 Overview

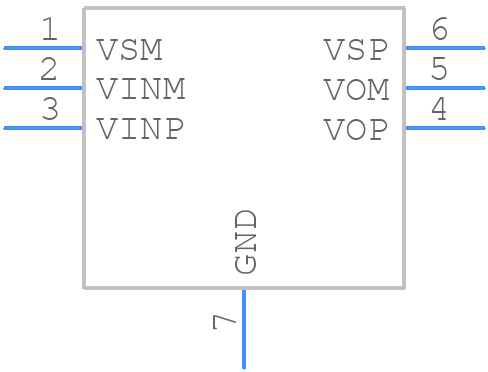

Use the download button to access the ISL55016IRTZ-T7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL55,
or try a keyword search, such as RF/Microwave Amplifiers
