ISL5585EVAL4 footprint, schematic symbol and 3D model by Renesas Electronics

ISL5585EVAL4 - Renesas Electronics

Description: The ISL5585EVAL4 evaluation board provides a complete pulse-code modulation (PCM) to 2-wire ringing SLIC/CODEC line card for the evaluation of the RSLIC18 family of 5V and 3.3V Ringing Subscriber Line Interface Circuits (RSLICs). The evaluation board is designed to accommodate both the HC55185 5V and the ISL5585 3.3V and includes companion 5V and 3.3V CODECs from Winbond.The 3.3V family of RSLICs supports analog Plain Old Telephone Service (POTS) in short and medium loop length, wireless and wireline voice

Download ISL5585EVAL4 Model

Schematic
symbols

PCB
footprints

3D
models

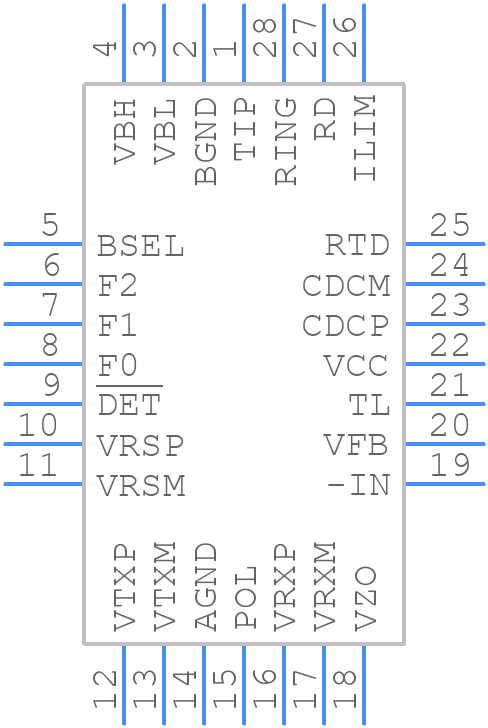

Symbol

click to zoom

PCB Footprints

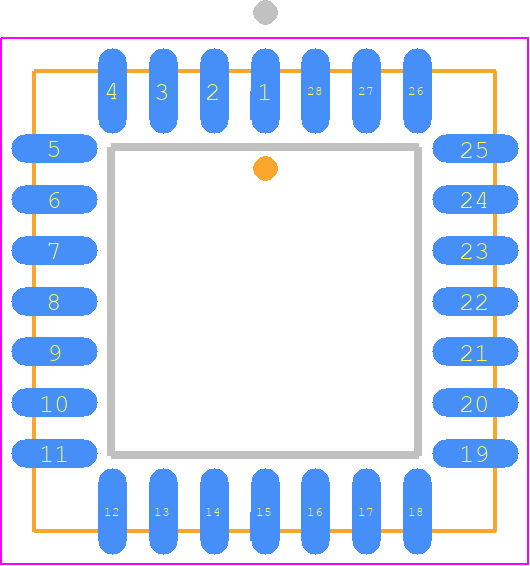

ISL5585EVAL4 - Renesas Electronics PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - N28.45

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ISL5585EVAL4
Part Number ISL5585EVAL4
Manufacturer Renesas Electronics
Pin Count 28
Part Category Integrated Circuit
Package Category Plastic Leaded Chip Carrier
Footprint Name Plastic Leaded Chip Carrier - N28.45
Released Date Mar 18, 2021
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

ISL5585EVAL4 Details

Manufacturer Part Number:
ISL5585EVAL4
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ISL5585EVAL4 Overview

Use the download button to access the ISL5585EVAL4 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ISL55, or try a keyword search, such as Analog Transmission Interfaces
