ISL58831CRZ - Renesas Electronics

Description: The ISL58831 is a combination read + 3 write level laser driver and IV amplifier, with an extra read + oscillator ROM channel for use in dual-laser ‘Combo’ drivers. A separate (amplitude and frequency) oscillator modulates the selected output for laser noise reduction during read or write. All these functions are provided in a 24 Ld QFN package. The SEL1 pin, when high, selects the DVD (write) laser. Positive current supplied to the IIN lines, through a user-selected resistor, allow the full-scale range of

Download ISL58831CRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

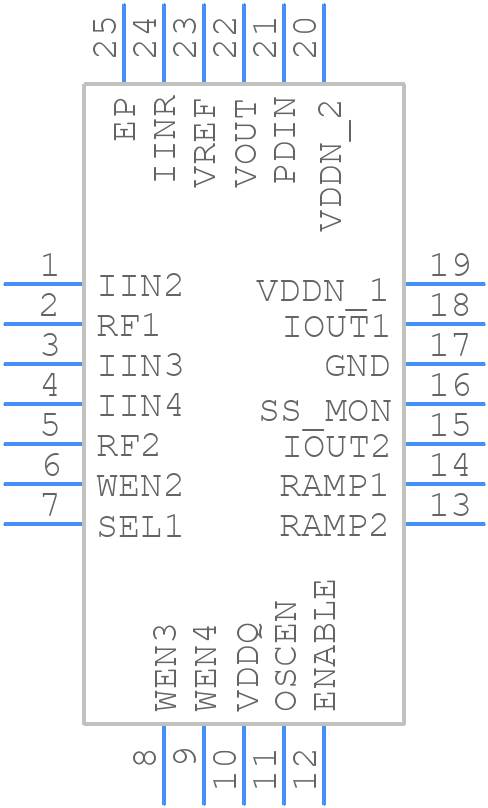

ISL58831CRZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL58831CRZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MDP0046
click to zoom
3D Models
ISL58831CRZ - Renesas Electronics - 3D model - Quad Flat No-Lead - MDP0046
click to zoom

ISL58831CRZ Details

  • Manufacturer Part Number:

    ISL58831CRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    24

  • Manufacturer Package Code:

    MDP0046

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-10-31

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Interface IC Type:

    INTERFACE CIRCUIT

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL58831CRZ Overview

Use the download button to access the ISL58831CRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL58, or try a keyword search, such as Other Interface ICs
