ISL59110IEZ-T7 - Renesas Electronics

Description: The ISL59110 is a single rail-to-rail 3-pole output reconstruction filter with a -3dB roll-off frequency of 8MHz and a slew rate of 40V/µs, with input signal DC restoration accomplished with an internal sync tip clamp. Operating from single supplies ranging from +2. 5V to +3. 6V and sinking an ultra-low 2mA quiescent current, the ISL59110 is ideally suited for low power, battery-operated applications. It also features inputs capable of reaching down to 0. 15V below the negative rail. Additionally, an enable

Download ISL59110IEZ-T7 Model

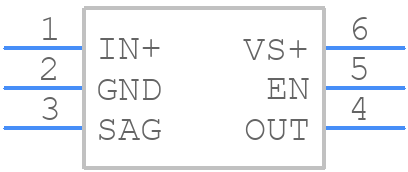

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL59110IEZ-T7 - Renesas Electronics PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - P6.049A
click to zoom
3D Models
ISL59110IEZ-T7 - Renesas Electronics  - 3D model - SOT23 (6-Pin) - P6.049A
click to zoom

ISL59110IEZ-T7 Details

  • Manufacturer Part Number:

    ISL59110IEZ-T7

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SC70

  • Package Description:

    SC-70, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    P6.049A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2017-10-31

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Bandwidth-Nom:

    8000 kHz

  • Consumer IC Type:

    VIDEO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP6,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    2.75 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.25 mm

ISL59110IEZ-T7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL59110IEZ-T7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power-up and initialization of the ISL59110IEZ-T7, make sure to follow the recommended power-up sequence, which involves applying power to the VCC pin first, followed by the EN pin. Also, ensure that the input voltage is within the recommended range and that the device is properly decoupled.
  • The ISL59110IEZ-T7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and thermal management. A thermal pad on the bottom of the package helps to dissipate heat, and a thermal interface material can be used to improve heat transfer.
  • To troubleshoot issues with the ISL59110IEZ-T7, start by verifying the power supply and input signals. Check for proper voltage levels, signal integrity, and signal timing. Use an oscilloscope to visualize the signals and identify any anomalies. Also, consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The ISL59110IEZ-T7 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
