ISL59601IRZ-T7 - Renesas Electronics

Description: The ISL59601, ISL59602, ISL59603, ISL59604, and ISL59605 (the “MegaQ™” product family) are single-channel adaptive equalizers designed to automatically compensate for long runs of Cat 5/6 or RG-59 cable, producing high quality video output with no user interaction. The ISL59601 equalizes Cat 5/6 up to a distance of 1000 feet (300 meters), while the ISL59605 equalizes up to 5300 feet (1600 meters). MegaQ™ compensates for high frequency cable losses of up to 60dB (ISL59605) at 5MHz as well as source amplitude

Download ISL59601IRZ-T7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

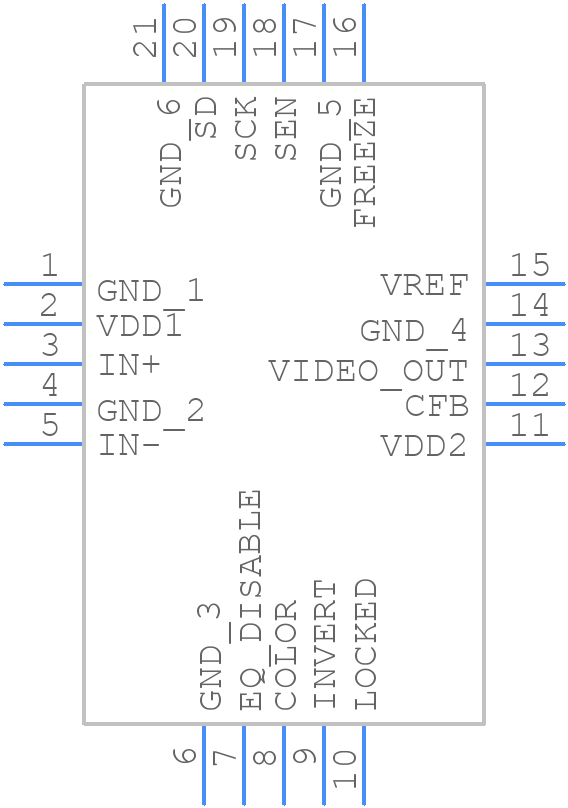

ISL59601IRZ-T7 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL59601IRZ-T7 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L20.4x4C-1
click to zoom
3D Models
ISL59601IRZ-T7 - Renesas Electronics - 3D model - Quad Flat No-Lead - L20.4x4C-1
click to zoom

ISL59601IRZ-T7 Details

  • Manufacturer Part Number:

    ISL59601IRZ-T7

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Manufacturer Package Code:

    L20.4X4C

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    MATTE TIN

  • Time@Peak Reflow Temperature-Max (s):

    30

ISL59601IRZ-T7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL59601IRZ-T7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and interference.
  • To ensure proper power and decoupling, use a high-quality power supply, add decoupling capacitors (e.g., 10uF and 100nF) close to the device, and follow the recommended power-up sequence outlined in the datasheet.
  • The maximum allowed input voltage for the ISL59601IRZ-T7 is 5.5V, exceeding which may damage the device. Ensure that the input voltage is within the recommended range of 2.7V to 5.5V.
  • To troubleshoot issues, start by verifying the power supply and decoupling, then check the input signal integrity, and finally, use an oscilloscope to analyze the output signal and identify any anomalies.
  • The ISL59601IRZ-T7 is rated for operation up to 125°C, but its performance may degrade at higher temperatures. Ensure that the device is properly heat-sinked and follow the recommended thermal design guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL59601IRZ-T7 Overview

Use the download button to access the ISL59601IRZ-T7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL59, or try a keyword search, such as Other Consumer ICs
