ISL59601IRZ - Renesas Electronics

Description: The ISL59601, ISL59602, ISL59603, ISL59604, and ISL59605 (the “MegaQ™” product family) are single-channel adaptive equalizers designed to automatically compensate for long runs of Cat 5/6 or RG-59 cable, producing high quality video output with no user interaction. The ISL59601 equalizes Cat 5/6 up to a distance of 1000 feet (300 meters), while the ISL59605 equalizes up to 5300 feet (1600 meters). MegaQ™ compensates for high frequency cable losses of up to 60dB (ISL59605) at 5MHz as well as source amplitude

Download ISL59601IRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

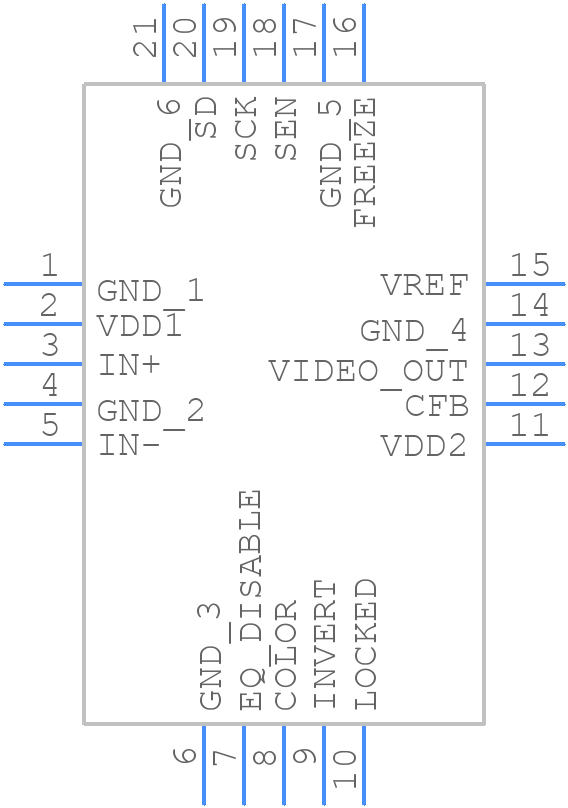

ISL59601IRZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL59601IRZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L20.4x4C-1
click to zoom
3D Models
ISL59601IRZ - Renesas Electronics - 3D model - Quad Flat No-Lead - L20.4x4C-1
click to zoom

ISL59601IRZ Details

  • Manufacturer Part Number:

    ISL59601IRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    L20.4X4C

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ISL59601IRZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use short, direct traces for the input and output signals, and avoid routing signals under the device.
  • Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) for power supply decoupling, placed as close to the device as possible. Ensure the power supply voltage is within the recommended range (2.7V to 5.5V) and use a low-dropout regulator if necessary.
  • Use a low-pass filter (e.g., RC filter) to remove high-frequency noise from the input signal. Ensure the input signal amplitude is within the recommended range (0.5V to 2.5V) and use a voltage divider or amplifier if necessary.
  • Use the device's power-down mode (PD pin) to reduce power consumption when not in use. Optimize the clock frequency and input signal amplitude to minimize power consumption. Consider using a lower power supply voltage if possible.
  • Ensure good airflow around the device and avoid blocking the thermal pad. Use a thermal interface material (e.g., thermal tape) to improve heat transfer between the device and the PCB. Consider using a heat sink if the device will be operating at high temperatures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL59601IRZ Overview

Use the download button to access the ISL59601IRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL59, or try a keyword search, such as Other Consumer ICs
