Description:The ISL59601, ISL59602, ISL59603, ISL59604, and ISL59605 (the “MegaQ™” product family) are single-channel adaptive equalizers designed to automatically compensate for long runs of Cat 5/6 or RG-59 cable, producing high quality video output with no user interaction. The ISL59601 equalizes Cat 5/6 up to a distance of 1000 feet (300 meters), while the ISL59605 equalizes up to 5300 feet (1600 meters). MegaQ™ compensates for high frequency cable losses of up to 60dB (ISL59605) at 5MHz as well as source amplitude
A good PCB layout for the ISL59603IRZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and interference.
To ensure stability, ensure that the output capacitor is properly sized, the input voltage is within the recommended range, and the device is operated within the recommended temperature range. Additionally, a low-ESR capacitor is recommended for the output filter.
The maximum allowed input voltage ripple for the ISL59603IRZ is 10% of the input voltage. Exceeding this limit may affect the device's performance and stability.
The ISL59603IRZ is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It is recommended to derate the device's performance and consider additional thermal management measures for high-temperature applications.
To troubleshoot issues with the ISL59603IRZ, start by verifying the input voltage, output voltage, and current consumption. Check for proper PCB layout, decoupling, and filtering. Use an oscilloscope to check for noise and oscillations. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL59603IRZ Overview

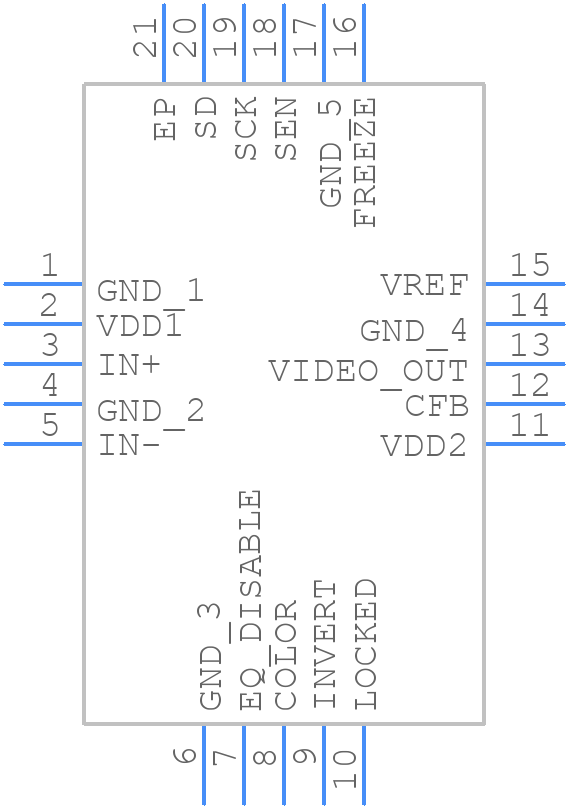

Use the download button to access the ISL59603IRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL59,
or try a keyword search, such as Other Consumer ICs
