ISL59605IRZ - Renesas Electronics

Description: The ISL59601, ISL59602, ISL59603, ISL59604, and ISL59605 (the “MegaQ™” product family) are single-channel adaptive equalizers designed to automatically compensate for long runs of Cat 5/6 or RG-59 cable, producing high quality video output with no user interaction. The ISL59601 equalizes Cat 5/6 up to a distance of 1000 feet (300 meters), while the ISL59605 equalizes up to 5300 feet (1600 meters). MegaQ™ compensates for high frequency cable losses of up to 60dB (ISL59605) at 5MHz as well as source amplitude

Download ISL59605IRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

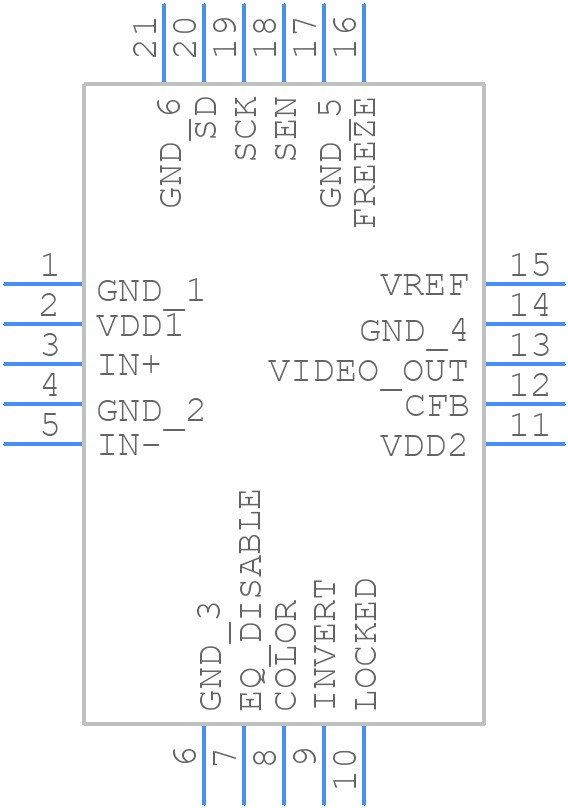

ISL59605IRZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL59605IRZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L20.4x4C-1
click to zoom
3D Models
ISL59605IRZ - Renesas Electronics - 3D model - Quad Flat No-Lead - L20.4x4C-1
click to zoom

ISL59605IRZ Details

  • Manufacturer Part Number:

    ISL59605IRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Manufacturer Package Code:

    L20.4X4C

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    MATTE TIN

  • Time@Peak Reflow Temperature-Max (s):

    30

ISL59605IRZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL59605IRZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to place the device close to the power supply and use a low-ESR capacitor for decoupling.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the power supply and use a low-impedance output filter to prevent oscillation.
  • The ISL59605IRZ can handle input voltages up to 12V, but it's recommended to operate within the specified input voltage range of 4.5V to 10V for optimal performance and reliability.
  • The ISL59605IRZ is rated for operation up to 125°C, but it's recommended to derate the device's performance at high temperatures. Consult the datasheet for thermal derating guidelines and ensure proper heat sinking and cooling to prevent overheating.
  • To troubleshoot issues with the ISL59605IRZ, start by checking the power supply and input voltage, then verify the output voltage and current. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
