Description:The ISL59830A is a revolutionary device that allows true single-supply operation of video amplifiers. The device runs off a single 3. 3V supply and generates the required negative voltage internally. This allows for DC-accurate coupling of video onto a 75Ω double-terminated line. Since the buffers have an integrated 6dB gain, the only external components required are the 75Ω termination resistors and a small capacitor. An input reference voltage can be supplied to shift the analog video level down by an amo
A good PCB layout is crucial for the ISL59830AIAZ. Renesas recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. Additionally, place the device close to the power supply, and use short, wide traces for the power lines. A good layout will help minimize noise and ensure stable operation.
The ISL59830AIAZ has a thermal pad on the bottom of the package, which is connected to the die. To ensure proper thermal management, Renesas recommends connecting the thermal pad to a solid ground plane on the PCB, and using thermal vias to dissipate heat. A thermal interface material (TIM) can also be used to improve heat transfer.
Renesas recommends using a high-quality, low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor (CIN). The capacitor should be placed as close to the device as possible, and connected between the VIN pin and the GND pin.
The ISL59830AIAZ has a specific power sequencing requirement. Renesas recommends powering up the device in the following order: VIN, followed by VCC, and then the enable pin (EN). This ensures that the internal voltage regulators are properly initialized and that the device operates correctly.
The enable pin (EN) has a maximum allowed voltage of 5.5V. Exceeding this voltage can damage the device. Renesas recommends using a voltage limiter or a voltage divider to ensure that the EN pin voltage does not exceed 5.5V.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL59830AIAZ Overview

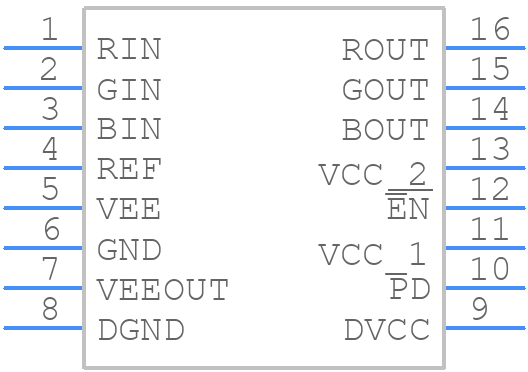

Use the download button to access the ISL59830AIAZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL59,
or try a keyword search, such as Audio/Video Amplifiers
