Description:The ISL59830 is a revolutionary device that allows true singlesupply operation of video amplifiers. The device runs off a single 3. 3V supply and generates the required negative voltage internally. This allows for DC-accurate coupling of video onto a 75Ω double-terminated line. Since the buffers have an integrated 6dB gain, no external gain setting resistors are required. An input reference voltage can be supplied to shift the analog video level down by an amount equal to the reference (typically 0. 6V).
The recommended PCB layout for optimal performance involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and load.
To ensure stability and prevent oscillations in the output voltage, it's recommended to use a minimum output capacitance of 10uF, and to ensure that the output capacitor has a low equivalent series resistance (ESR). Additionally, the device's compensation pin should be connected to a capacitor and resistor network to provide additional stability.
The maximum input voltage that can be applied to the ISL59830IAZ without damaging it is 18V. However, it's recommended to operate the device within the recommended input voltage range of 4.5V to 15V to ensure optimal performance and reliability.
The device's output voltage can be programmed using the VID pins by connecting them to a resistor network that sets the desired output voltage. The VID pins are connected to a internal resistor divider network that sets the output voltage based on the voltage applied to the pins. The output voltage can be calculated using the formula provided in the datasheet.
The device's power-on reset (POR) timing is approximately 10ms, during which the output voltage is held low. After the POR timing, the output voltage will ramp up to the programmed value. The POR timing can affect the output voltage by causing a delay in the output voltage reaching its final value, and it's recommended to ensure that the load can tolerate this delay.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL59830IAZ Overview

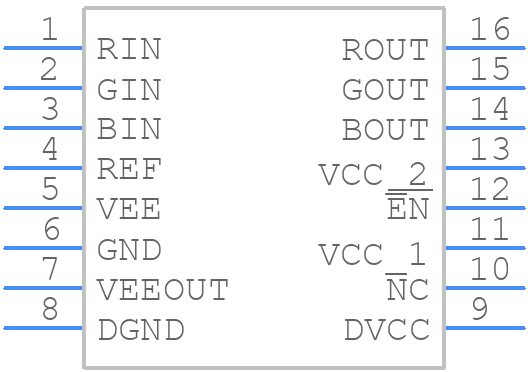

Use the download button to access the ISL59830IAZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL59,
or try a keyword search, such as Audio/Video Amplifiers
