Description:The ISL59833 is a revolutionary device that allows true singlesupply operation of video amplifiers. Designed for systems requiring output swing below ground but lacking a negative power supply, the ISL59833 generates the required negative rail internally from a +3. 3V power supply. This allows for DC-accurate coupling of video onto a 75Ω double-terminated line. The buffers have an integrated 6dB, eliminating the need for external gain-setting resistors. An external reference voltage can be applied to the RE
A good PCB layout for the ISL59833IAZ-T7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and interference.
To ensure proper power and decoupling, use a high-quality power supply, add decoupling capacitors (e.g., 10uF and 100nF) close to the device, and follow the recommended power-up sequence outlined in the datasheet.
For optimal performance, use a low-pass filter or a band-pass filter to condition the input signal, and ensure the signal amplitude is within the recommended range (typically 1-2Vpp).
To troubleshoot issues, check the PCB layout, power supply, and input signal conditioning. Verify that the device is properly powered and decoupled, and that the input signal is within the recommended range. Consult the datasheet and application notes for guidance.
To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and follow the recommended operating temperature range (typically -40°C to 125°C).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL59833IAZ-T7 Overview

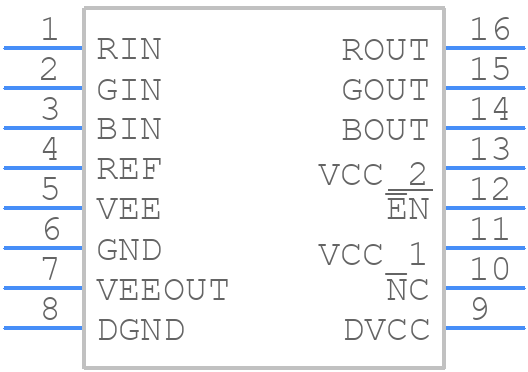

Use the download button to access the ISL59833IAZ-T7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL59,
or try a keyword search, such as Audio/Video Amplifiers
