Description:The ISL59837 is a revolutionary device that allows true singlesupply operation of video amplifiers. Designed for systems requiring output swing below ground but lacking a negative power supply, the ISL59837 generates the required negative rail internally from a +3. 3V power supply. This allows for DC-accurate coupling of video onto a 75Ω double-terminated line. The buffers have an integrated 6dB, eliminating the need for external gain-setting resistors. An external reference voltage can be applied to the RE
The recommended PCB layout for optimal performance can be found in the ISL59837IAZ-T7 evaluation board user manual or by contacting Renesas Electronics Corporation's technical support. A good layout should minimize noise, ensure proper grounding, and keep sensitive analog signals away from digital signals.
To troubleshoot issues with the ISL59837IAZ-T7, start by reviewing the datasheet and application notes to ensure proper configuration and usage. Check for proper power supply, clock signal, and input/output connections. Use oscilloscopes or logic analyzers to debug digital signals and analog signals. If issues persist, contact Renesas Electronics Corporation's technical support for further assistance.
The ISL59837IAZ-T7 has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. A heat sink or thermal interface material can be used to improve heat dissipation. Ensure good airflow around the device and avoid blocking the thermal pad with components or soldermask.
The ISL59837IAZ-T7 is an automotive-grade device, but it's essential to review the device's AEC-Q100 qualification and PPAP documentation to ensure it meets the specific requirements of your high-reliability or automotive application. Additionally, consult with Renesas Electronics Corporation's technical support to discuss any specific requirements or concerns.
To ensure EMC with the ISL59837IAZ-T7, follow proper PCB layout and design guidelines, such as keeping sensitive analog signals away from digital signals, using shielding, and implementing proper filtering and decoupling. Consult the datasheet and application notes for specific guidance, and consider conducting EMC testing to ensure compliance with relevant standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL59837IAZ-T7 Overview

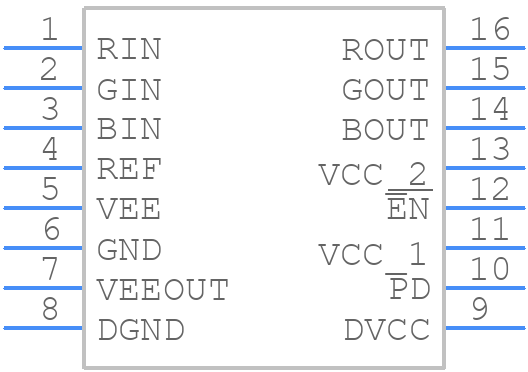

Use the download button to access the ISL59837IAZ-T7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL59,
or try a keyword search, such as Audio/Video Amplifiers
