Description:The ISL59911 is a triple channel differential receiver and equalizer optimized for RGB and YPbPr video signals. It contains three high speed differential receivers with programmable frequency compensation. The ISL59911 features manual or automatic offset calibration and ±4dB of gain adjustment range with a resolution of 0. 1dB. The ISL59911 has a bandwidth of 250MHz and consumes only 110mA from a ±5V supply in normal operation. When deasserted, the ENABLE pin puts the amplifiers into a low power, high imped
The recommended PCB layout for optimal performance involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation over the full temperature range, it's essential to follow the recommended operating conditions, including voltage and current ratings. Additionally, consider using thermal management techniques such as heat sinks or thermal interfaces to keep the device within its specified temperature range.
The ISL59911IRZ is designed to meet EMI and RFI standards, but it's still important to follow good design practices to minimize electromagnetic interference. This includes using shielding, filtering, and proper grounding techniques to reduce emissions and improve immunity.
The ISL59911IRZ is a commercial-grade device, but it can be used in high-reliability or safety-critical applications with proper design, testing, and validation. It's essential to follow industry standards and guidelines, such as IEC 61508 or DO-254, to ensure the device meets the required safety and reliability requirements.
Potential failure modes for the ISL59911IRZ include overvoltage, overcurrent, and overheating. To mitigate these failure modes, it's essential to follow the recommended operating conditions, use proper thermal management, and implement overvoltage and overcurrent protection circuits.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL59911IRZ Overview

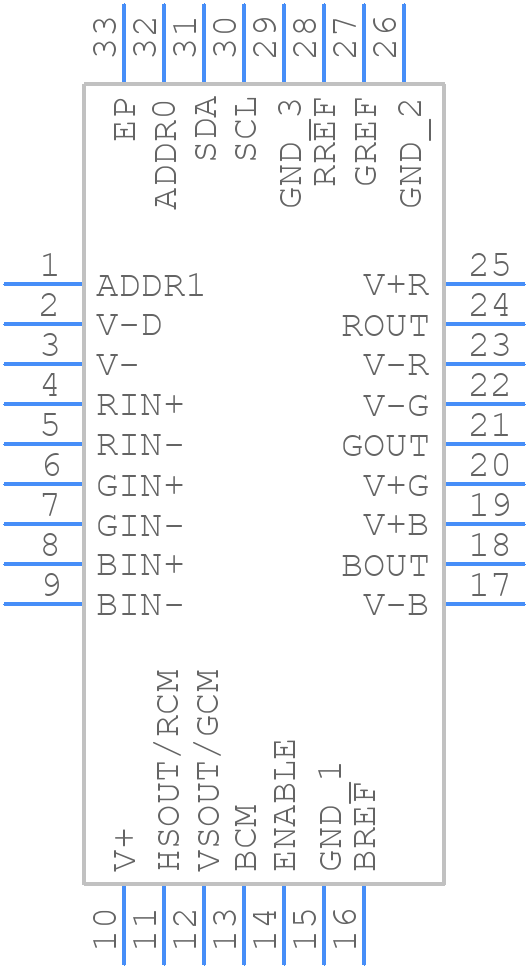

Use the download button to access the ISL59911IRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL59,
or try a keyword search, such as Line Driver or Receivers
