Description:Support is limited to customers who have already adopted these products.The ISL59920, ISL59921, ISL59922, and ISL59923 are triple analog delay lines that provide skew compensation between three high-speed signals. These parts are ideal for compensating for the skew introduced by a typical CAT-5, CAT-6 or CAT-7 cable (with differing electrical lengths on each twisted pair) when transmitting analog video. Using a simple serial interface, the ISL59920, ISL59921, ISL59922, and ISL59923’s delays are programmable
Renesas provides a recommended PCB layout guide in the ISL59920IRZ evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To ensure reliable operation over the full temperature range, it is essential to follow the recommended operating conditions, including voltage, current, and thermal management. Additionally, consider using thermal design and simulation tools to optimize the PCB layout and ensure adequate heat dissipation.
The ISL59920IRZ is designed to meet EMI and RFI standards, but it is still important to follow good design practices, such as using shielding, filtering, and grounding techniques to minimize electromagnetic interference and radio-frequency interference.
Renesas provides a troubleshooting guide in the ISL59920IRZ datasheet and application notes, which covers common issues and their solutions. Additionally, consider using simulation tools and oscilloscopes to debug and analyze the circuit behavior.
Renesas provides a list of recommended components for the external circuitry, including capacitors, resistors, and inductors, in the ISL59920IRZ datasheet and application notes. It is essential to follow these recommendations to ensure optimal performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL59920IRZ Overview

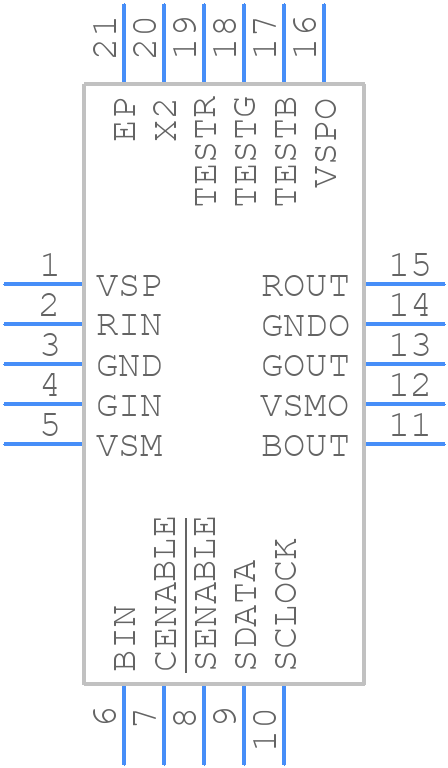

Use the download button to access the ISL59920IRZ schematic symbol, PCB footprint, and 3D model.
