ISL59960IRZ - Renesas Electronics

Description: The ISL59960 is a single-channel adaptive equalizer for 960H (WD1) or 720H (D1) composite video designed to automatically compensate for long runs of CAT 5/CAT 6 or RG-59 cable, producing high quality video output with no user interaction. The ISL59960 equalizes up to 4000 feet (1200 meters) of CAT 5/CAT 6 cable. 960MegaQ™ compensates for high frequency cable losses of up to 70dB at 9MHz, as well as source amplitude variations up to ±3dB. The ISL59960 operates from a single +5V supply. Inputs are AC-coupled

Download ISL59960IRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

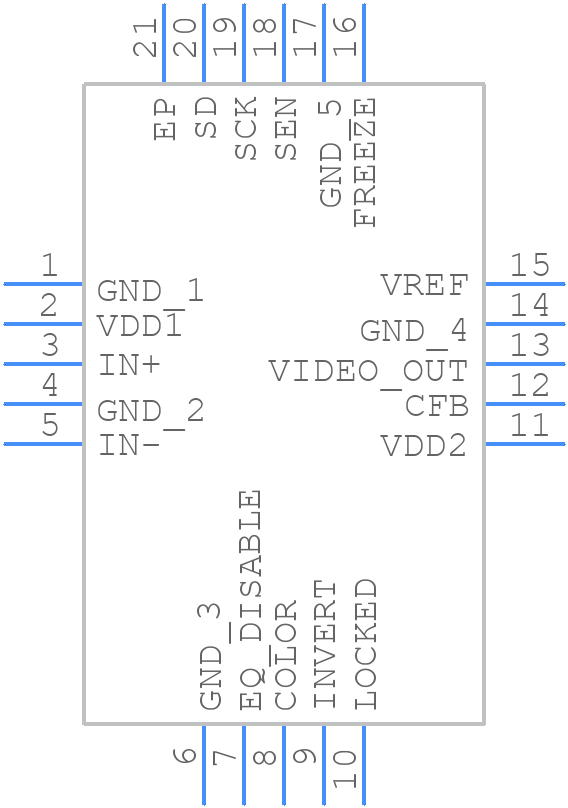

ISL59960IRZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL59960IRZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L20.4x4C-ren1
click to zoom
3D Models
ISL59960IRZ - Renesas Electronics - 3D model - Quad Flat No-Lead - L20.4x4C-ren1
click to zoom

ISL59960IRZ Details

  • Manufacturer Part Number:

    ISL59960IRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Manufacturer Package Code:

    L20.4X4C

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    MATTE TIN

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL59960IRZ Overview

Use the download button to access the ISL59960IRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL59, or try a keyword search, such as Other Consumer ICs
