Description:This fully featured hot swap power controller targets +12V applications. The ISL6115A with its integrated charge pump has a higher (6. 5V vs 5V) gate drive than its sister part the ISL6115 making this part an immediate efficiency improvement replacement. This IC features programmable overcurrent (OC) detection, current regulation (CR) with time delay to latch-off and soft-start. The current regulation level is set by 2 external resistors; RISET sets the CR Vth and the other is a low ohmic sense resistor acr
A good PCB layout for the ISL6115ACBZ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the output voltage traces away from the input voltage traces to minimize noise coupling.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also recommended to add a small resistor (e.g. 1-10 ohms) in series with the output capacitor to dampen any potential oscillations.
The ISL6115ACBZ is rated for operation from -40°C to +85°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to follow the recommended operating conditions and derate the device's performance accordingly.
Yes, the ISL6115ACBZ is suitable for high-reliability and automotive applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability and performance. However, it's recommended to follow the recommended operating conditions and to consult with Renesas Electronics Corporation for specific requirements and qualifications.
To troubleshoot issues with the ISL6115ACBZ, start by checking the input voltage, output voltage, and current draw. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating, such as excessive temperature rise or burning smells. Use an oscilloscope to check for any oscillations or noise on the output voltage. Consult the datasheet and application notes for troubleshooting guides and contact Renesas Electronics Corporation's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6115ACBZ Overview

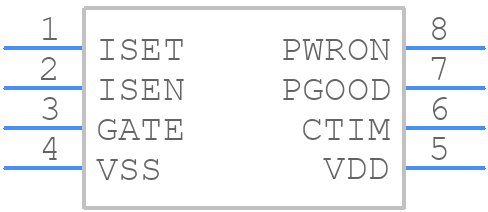

Use the download button to access the ISL6115ACBZ schematic symbol, PCB footprint, and 3D model.
