Description:The ISL6131 and ISL6132 are a family of high-accuracy, multi-voltage supervisory ICs designed to monitor voltages greater than 0. 7V in applications ranging from microprocessors to industrial power systems. The ISL6131 is an undervoltage four-supply supervisor, and the ISL6132 is a two-voltage supervisor monitoring for undervoltage (UV) and overvoltage (OV) conditions. Both ICs feature four external resistor programmable voltage monitoring (VMON) inputs, each with a related STATUS output that individually r
A good PCB layout is crucial for the ISL6132IRZA's performance. Renesas recommends a 4-layer PCB with a solid ground plane, and to keep the input and output capacitors close to the IC. Additionally, the feedback resistors should be placed close to the IC and the sense lines should be routed away from noise sources.
To ensure stability, it's essential to follow the recommended component values and PCB layout. Additionally, the output capacitor's ESR should be within the recommended range, and the input capacitor should be a low-ESR type. Also, the feedback resistors should be chosen to ensure a stable gain margin.
The maximum allowed input voltage ripple for the ISL6132IRZA is 10% of the input voltage. Exceeding this limit may affect the regulator's performance and stability.
The ISL6132IRZA is rated for operation up to 125°C, but it's essential to consider the derating curves and thermal management to ensure reliable operation. A heat sink or thermal pad may be necessary for high-temperature applications.
To troubleshoot oscillations or instability issues, check the PCB layout, component values, and input/output capacitors. Ensure that the feedback resistors are correctly chosen, and the output capacitor's ESR is within the recommended range. Also, verify that the input voltage is within the specified range and the output current is within the maximum rating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6132IRZA Overview

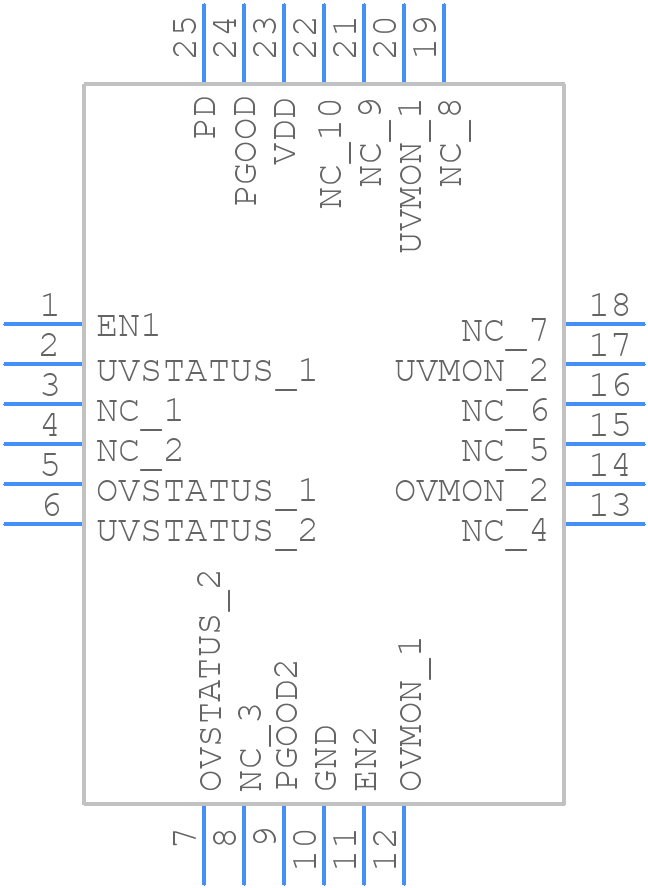

Use the download button to access the ISL6132IRZA schematic symbol, PCB footprint, and 3D model.
