ISL6140IBZ - Renesas Electronics

Description: The ISL6140 is an 8 Ld, negative voltage hot plug controller that allows a board to be safely inserted and removed from a live backplane. Inrush current is limited to a programmable value by controlling the gate voltage of an external N-channel pass transistor. The pass transistor is turned off if the input voltage is less than the undervoltage threshold, or greater than the overvoltage threshold. A programmable electronic circuit breaker protects the system against shorts. The active low PWRGD signal can b

Download ISL6140IBZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

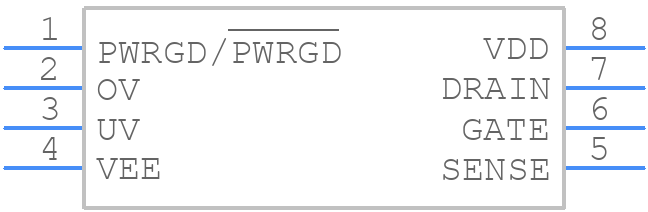

ISL6140IBZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL6140IBZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8-15
click to zoom
3D Models
ISL6140IBZ - Renesas Electronics - 3D model - Small Outline Packages - M8-15
click to zoom

ISL6140IBZ Details

  • Manufacturer Part Number:

    ISL6140IBZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    72 V

  • Supply Voltage-Min (Vsup):

    36 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ISL6140IBZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL6140IBZ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces connecting the device to the capacitors and resistors.
  • To ensure stability, ensure that the output capacitor is within the recommended range, the input voltage is within the specified range, and the device is operated within the recommended temperature range. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
  • The ISL6140IBZ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's performance and consider thermal management techniques to ensure reliable operation.
  • The output voltage of the ISL6140IBZ can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the resistors connected to the FB pin, Vin is the input voltage, and Vref is the internal reference voltage (1.25V).
