Description:The ISL6141 is an 8-pin, negative voltage hot plug controller that allows a board to be safely inserted and removed from a live backplane. Inrush current is limited to a programmable value by controlling the gate voltage of an external N-channel pass transistor. The pass transistor is turned off if the input voltage is less than the Under-Voltage threshold, or greater than the Over-Voltage threshold. The IntelliTrip™ electronic circuit breaker and programmable current limit features protect the system again
The recommended PCB layout for optimal performance involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
To ensure the device operates within the specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. The device's thermal pad should be connected to a heat sink or a copper plane on the PCB to dissipate heat efficiently.
The recommended input capacitor value is typically in the range of 1uF to 10uF, and it's recommended to use a low-ESR ceramic capacitor, such as an X5R or X7R type, to minimize voltage ripple and ensure stable operation.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors for correct values and connections. Also, verify that the device is operating within the specified temperature range and that the PCB layout is correct. If issues persist, consult the datasheet or contact Renesas support for further assistance.
The ISL6141CBZA-T is a commercial-grade device, and its use in high-reliability or aerospace applications may require additional testing and qualification. It's recommended to consult with Renesas support to determine the device's suitability for such applications and to discuss any necessary testing or certification requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6141CBZA-T Overview

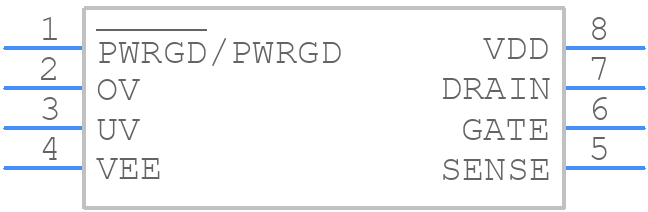

Use the download button to access the ISL6141CBZA-T schematic symbol, PCB footprint, and 3D model.
