Description:The ISL6146 represents a family of OR-ing MOSFET controllers capable of OR-ing voltages from 1V to 18V. Together with suitably sized N-channel power MOSFETs, the ISL6146 increases power distribution efficiency when replacing a power OR-ing diode in high current applications. It provides gate drive voltage for the MOSFET(s) with a fully integrated charge pump. The ISL6146 allows users to adjust with external resistor(s) the VOUT - VIN trip point, which adjusts the control sensitivity to system power supply n
The recommended PCB layout for optimal performance involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and improve stability.
To ensure the device operates within the specified temperature range, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device. Additionally, the device should be operated within the specified power dissipation limits to prevent overheating.
The recommended input capacitor type is a low-ESR ceramic capacitor with a value of 10uF to 22uF. The capacitor should be rated for the input voltage and have a low equivalent series resistance (ESR) to minimize voltage ripple and ensure stable operation.
To troubleshoot issues with the device not regulating the output voltage, check the input voltage, output load, and feedback resistors for correct values and connections. Ensure that the device is properly powered and that the input voltage is within the specified range. Also, check for any signs of overheating or damage to the device.
The maximum output current capability of the ISL6146AFRZ-T is 6A. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. It's essential to ensure that the device is operated within the specified power dissipation limits to prevent overheating and damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6146AFRZ-T Overview

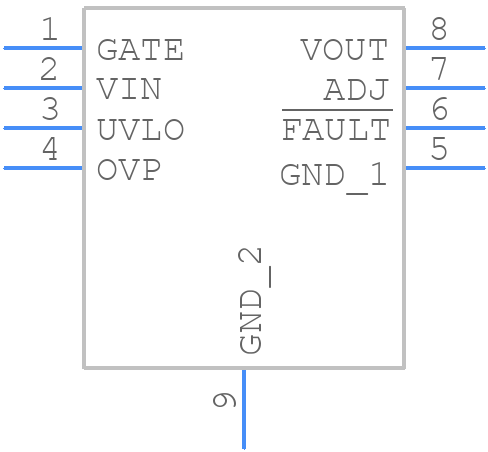

Use the download button to access the ISL6146AFRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL61,
or try a keyword search, such as MOSFET Drivers
