Description:The ISL6146 represents a family of OR-ing MOSFET controllers capable of OR-ing voltages from 1V to 18V. Together with suitably sized N-channel power MOSFETs, the ISL6146 increases power distribution efficiency when replacing a power OR-ing diode in high current applications. It provides gate drive voltage for the MOSFET(s) with a fully integrated charge pump. The ISL6146 allows users to adjust with external resistor(s) the VOUT - VIN trip point, which adjusts the control sensitivity to system power supply n
A good PCB layout for the ISL6146AFUZ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output voltage should be set within the recommended range, and the input voltage should be within the specified operating range. It's also crucial to ensure that the device is operated within the recommended temperature range.
The ISL6146AFUZ has a thermal shutdown feature that protects the device from overheating. However, it's still essential to ensure good thermal design practices, such as providing adequate airflow, using a heat sink if necessary, and keeping the device away from other heat sources. The device's thermal resistance (θJA) is 45°C/W, and the maximum junction temperature is 150°C.
To troubleshoot issues with the ISL6146AFUZ, start by verifying that the input voltage is within the specified range and that the output voltage is set correctly. Check the PCB layout for any errors or omissions, and ensure that the device is operated within the recommended temperature range. Use an oscilloscope to check for any oscillations or noise on the output, and verify that the input and output capacitors are of the correct value and type.
The ISL6146AFUZ is designed to minimize electromagnetic interference (EMI). However, it's still essential to follow good EMI design practices, such as using a shielded enclosure, keeping the device away from other noise sources, and using EMI filters or shielding on the input and output lines. Additionally, ensure that the PCB layout is designed to minimize radiation and coupling.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6146AFUZ Overview

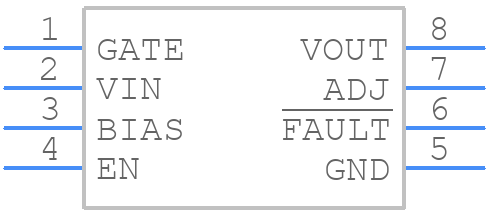

Use the download button to access the ISL6146AFUZ schematic symbol, PCB footprint, and 3D model.
