Description:The ISL6146 represents a family of OR-ing MOSFET controllers capable of OR-ing voltages from 1V to 18V. Together with suitably sized N-channel power MOSFETs, the ISL6146 increases power distribution efficiency when replacing a power OR-ing diode in high current applications. It provides gate drive voltage for the MOSFET(s) with a fully integrated charge pump. The ISL6146 allows users to adjust with external resistor(s) the VOUT - VIN trip point, which adjusts the control sensitivity to system power supply n
The recommended PCB layout for optimal performance involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
To ensure stability and prevent oscillations in the output voltage, it's essential to follow the recommended compensation network configuration, choose the correct output capacitor value and type, and ensure that the input voltage is within the specified range. Additionally, the device's output voltage should be decoupled from the input voltage using a suitable filter network.
The maximum allowed input voltage ripple for the ISL6146CFRZ is not explicitly specified in the datasheet. However, as a general rule, it's recommended to keep the input voltage ripple below 10% of the nominal input voltage to ensure stable operation and prevent output voltage oscillations.
The ISL6146CFRZ is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended thermal management guidelines and ensure that the device is properly heatsinked to prevent overheating.
To troubleshoot output voltage errors or deviations from the expected value, check the input voltage, output capacitor value and type, and the compensation network configuration. Ensure that the device is properly configured and that the output voltage is not loaded excessively. Use an oscilloscope to measure the output voltage and check for any signs of oscillations or noise.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6146CFRZ Overview

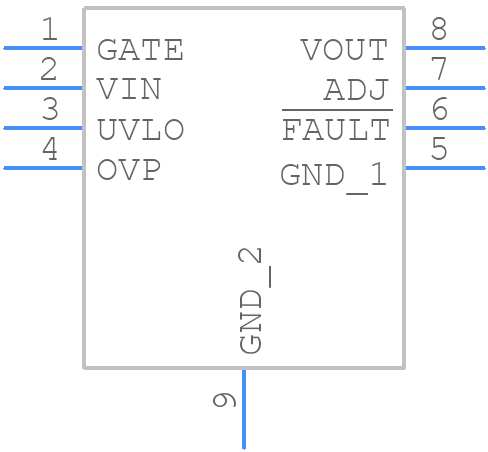

Use the download button to access the ISL6146CFRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL61,
or try a keyword search, such as MOSFET Drivers
