Description:The ISL6146 represents a family of OR-ing MOSFET controllers capable of OR-ing voltages from 1V to 18V. Together with suitably sized N-channel power MOSFETs, the ISL6146 increases power distribution efficiency when replacing a power OR-ing diode in high current applications. It provides gate drive voltage for the MOSFET(s) with a fully integrated charge pump. The ISL6146 allows users to adjust with external resistor(s) the VOUT - VIN trip point, which adjusts the control sensitivity to system power supply n
The recommended PCB layout for optimal performance involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and improve stability.
To ensure the device operates within the specified temperature range, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device. Additionally, the device should be operated within the specified power dissipation limits to prevent overheating.
The recommended input capacitor type is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This type of capacitor provides low impedance and high ripple current capability, which helps to reduce input voltage ripple and improve overall system performance.
To troubleshoot issues with the device, it's recommended to check the input voltage, output voltage, and output current using an oscilloscope or a multimeter. Additionally, check the PCB layout and component values to ensure they meet the recommended specifications. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Renesas Electronics Corporation's technical support team for assistance.
Yes, the ISL6146CFUZ-T is suitable for use in high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard for automotive-grade devices and is designed to operate in harsh environments. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6146CFUZ-T Overview

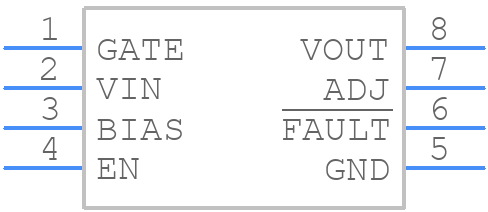

Use the download button to access the ISL6146CFUZ-T schematic symbol, PCB footprint, and 3D model.
