Description:The ISL6146 represents a family of OR-ing MOSFET controllers capable of OR-ing voltages from 1V to 18V. Together with suitably sized N-channel power MOSFETs, the ISL6146 increases power distribution efficiency when replacing a power OR-ing diode in high current applications. It provides gate drive voltage for the MOSFET(s) with a fully integrated charge pump. The ISL6146 allows users to adjust with external resistor(s) the VOUT - VIN trip point, which adjusts the control sensitivity to system power supply n
A good PCB layout is crucial for the ISL6146DFUZ. Renesas recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital sections separate. Additionally, use short and wide traces for the power lines, and avoid vias under the IC. A reference design is available in the datasheet or from Renesas support.
The ISL6146DFUZ requires a specific power-up sequence to ensure proper operation. Apply VCC first, followed by VDD, and then the input voltage (VIN). The device will automatically initialize and start operating. Refer to the datasheet for the recommended power-up sequence diagram.
The ISL6146DFUZ can tolerate a maximum input voltage ripple of 10mVp-p. Exceeding this limit may affect the device's performance and stability. It's recommended to use a high-quality input filter or a voltage regulator to minimize the input voltage ripple.
The ISL6146DFUZ is rated for operation up to 125°C (TJ). However, the device's performance and reliability may degrade at high temperatures. It's recommended to use a heat sink or a thermal management system to keep the device temperature below 100°C for optimal performance and reliability.
To troubleshoot issues with the ISL6146DFUZ, start by verifying the PCB layout and ensuring that the device is properly powered up and initialized. Check the input voltage and current, and verify that the output voltage is within the specified range. Use an oscilloscope to monitor the output voltage and current, and look for any signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guidelines and tips.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6146DFUZ Overview

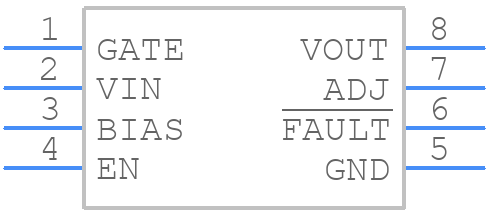

Use the download button to access the ISL6146DFUZ schematic symbol, PCB footprint, and 3D model.
