ISL6161CBZA-T - Renesas Electronics

Description: The ISL6161 is a hot swap dual supply power distribution controller that can be used in PCI Express (PCIe) applications. Two external N-channel MOSFETs are driven to distribute and control power while providing load fault isolation. At turn-on, the gate of each external N-channel MOSFET is charged with a 10μA current source. Capacitors on each gate create a programmable ramp (soft turn-on) to control in-rush currents. A built-in charge pump supplies the gate drive for the 12V supply N-channel MOSFET switch.

Download ISL6161CBZA-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

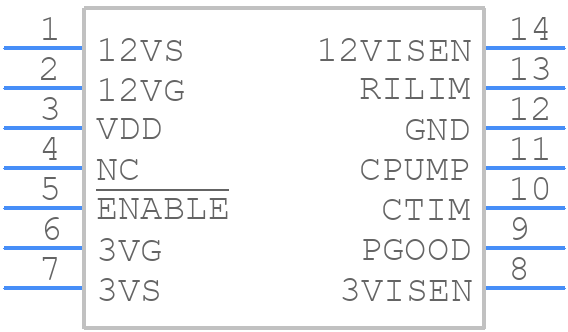

ISL6161CBZA-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL6161CBZA-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M14.15 Rev 1, 10/09
click to zoom
3D Models
ISL6161CBZA-T - Renesas Electronics - 3D model - Small Outline Packages - M14.15 Rev 1, 10/09
click to zoom

ISL6161CBZA-T Details

  • Manufacturer Part Number:

    ISL6161CBZA-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    M14.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    10.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ISL6161CBZA-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL6161CBZA-T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Renesas provides a recommended PCB layout in the application note AN1995.
  • The ISL6161CBZA-T requires a bias voltage of 4.5V to 5.5V on the VCC pin. Ensure that the bias voltage is stable and within the recommended range. Additionally, the device requires a minimum of 10nF decoupling capacitor between VCC and GND to filter out noise.
  • The ISL6161CBZA-T has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to operate within a temperature range of 0°C to 85°C for optimal performance.
  • The ISL6161CBZA-T has built-in ESD protection, but it's still recommended to take precautions during handling and assembly. Use an ESD wrist strap or mat, and avoid touching the device's pins. Additionally, ensure that the device is properly soldered and that there are no exposed pins or conductive paths that can attract ESD.
  • The recommended input impedance for the ISL6161CBZA-T is 50Ω. This ensures that the device can drive the input signal properly and maintain its high-frequency performance.
