Description:The ISL6161 is a hot swap dual supply power distribution controller that can be used in PCI Express (PCIe) applications. Two external N-channel MOSFETs are driven to distribute and control power while providing load fault isolation. At turn-on, the gate of each external N-channel MOSFET is charged with a 10μA current source. Capacitors on each gate create a programmable ramp (soft turn-on) to control in-rush currents. A built-in charge pump supplies the gate drive for the 12V supply N-channel MOSFET switch.
A good PCB layout for the ISL6161IVZA-T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Renesas provides a recommended PCB layout in the application note AN1443.
To ensure reliable operation over the full temperature range, it's essential to follow proper thermal design and layout guidelines. This includes providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. Additionally, ensure that the device is operated within its specified temperature range and that the input voltage is within the recommended range.
To mitigate EMI and RFI, it's crucial to use proper shielding, grounding, and filtering techniques. This includes using a metal shield around the device, connecting the shield to the ground plane, and using EMI filters on the input and output lines. Additionally, ensure that the device is placed away from sources of electromagnetic interference.
To troubleshoot common issues like oscillation or instability, start by checking the PCB layout and ensuring that it follows the recommended layout guidelines. Verify that the input and output capacitors are properly sized and placed, and that the device is operated within its specified operating conditions. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or instability.
To characterize the ISL6161IVZA-T, use a combination of DC and AC measurements. Measure the output voltage and current using a multimeter and an oscilloscope, respectively. Use a network analyzer to measure the device's frequency response and phase margin. Additionally, use a thermal camera or thermometer to measure the device's temperature during operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6161IVZA-T Overview

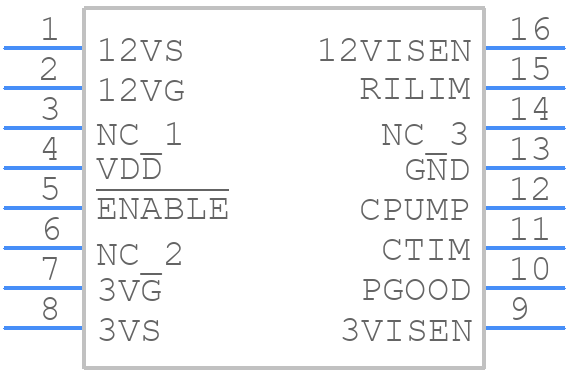

Use the download button to access the ISL6161IVZA-T schematic symbol, PCB footprint, and 3D model.
