Description:This IC targets dual voltage hot swap applications across the +2. 5V to +3. 3V (nominal) bias supply voltage range with a second lower voltage rail down to less than 1V. It features a charge pump for driving external N-Channel MOSFETs, regulated current protection and duration, output undervoltage monitoring and reporting, optional latch-off or retry response, and adjustable soft-start. The current regulation level (CR) for each rail is set by two external resistors and each CR duration is set by an externa
A good PCB layout is crucial for the ISL6173DRZA-T. Renesas recommends a 4-layer PCB with a solid ground plane, and to keep the input and output capacitors close to the IC. Additionally, the feedback resistors should be placed close to the IC and the sense lines should be routed away from noisy signals.
To ensure stability, make sure to follow the recommended component values and PCB layout. Also, ensure that the output capacitor has a low ESR and is properly decoupled. Additionally, the input voltage should be well-regulated and the output load should be within the recommended range.
The maximum junction temperature for the ISL6173DRZA-T is 125°C. However, it's recommended to keep the junction temperature below 100°C for optimal performance and reliability.
Yes, the ISL6173DRZA-T is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its recommended specifications.
To troubleshoot issues, start by checking the input voltage, output voltage, and current. Verify that the component values are correct and the PCB layout is proper. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes or contact Renesas support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6173DRZA-T Overview

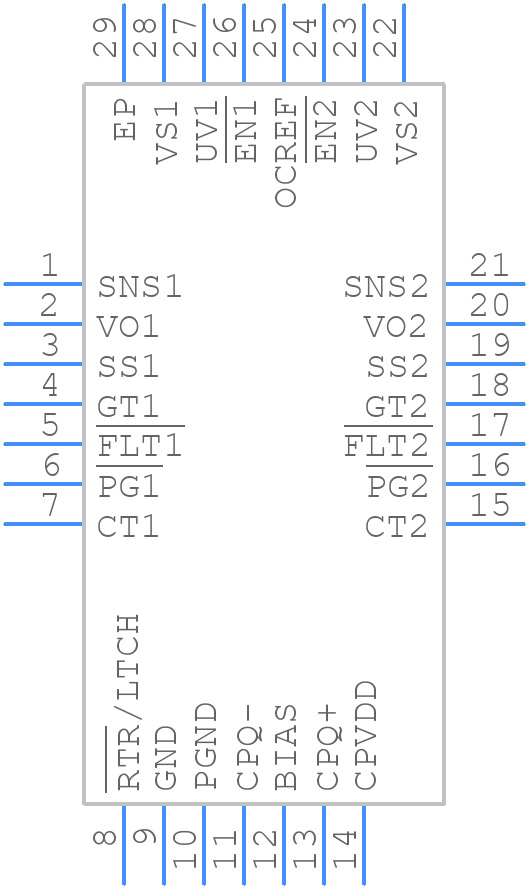

Use the download button to access the ISL6173DRZA-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL61,
or try a keyword search, such as Power Management Circuits
