Description:The ISL6185 USB power controller family provides fully independent overcurrent (OC) fault protection for two or more USB ports. This product family consists of sixteen individual functional product variants and three package options. It is operation rated for a nominal +2. 5V to +5V range and is specified over the full commercial and industrial temperature ranges. Each ISL6185 type incorporates in a single package two 71mΩ P-channel MOSFET power switches for power control. Each features internal current mon
Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. Renesas recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and following the guidelines in the datasheet for capacitor selection.
The ISL61852CCRZ is rated for operation from -40°C to +125°C, but the maximum ambient temperature range may be limited by the specific application and thermal design. It's recommended to follow the thermal management guidelines in the datasheet and application notes to ensure reliable operation.
The ISL61852CCRZ has built-in overcurrent protection and short-circuit protection features. To implement these features, follow the guidelines in the datasheet for setting the overcurrent threshold and short-circuit detection time, and ensure that the device is properly configured and connected to the power supply and load.
The recommended startup sequence for the ISL61852CCRZ is to first apply the input voltage, then enable the device by setting the EN pin high, and finally apply the output load. This sequence helps to ensure proper startup and minimize the risk of damage or malfunction.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL61852CCRZ Overview

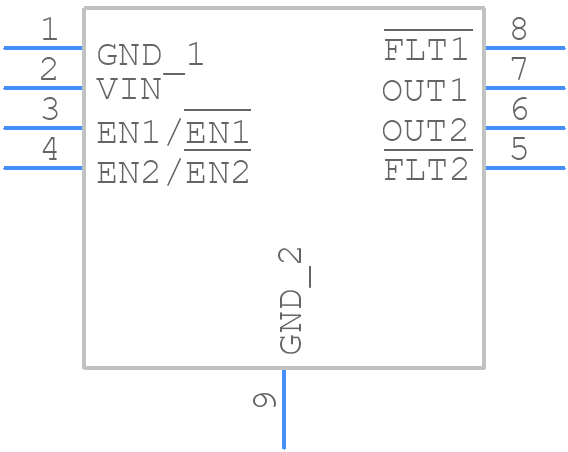

Use the download button to access the ISL61852CCRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL61,
or try a keyword search, such as Power Management Circuits
