Description:The ISL6251, ISL6251A is a highly integrated battery charger controller for Li-Ion/Li-Ion polymer batteries and NiMH batteries. High efficiency is achieved by a synchronous buck topology and the use of a MOSFET, instead of a diode, for selecting power from the adapter or battery. The low side MOSFET emulates a diode at light loads to improve the light load efficiency and prevent system bus boosting. The constant output voltage can be selected for 2, 3 and 4 series Li-Ion cells with 0. 5% accuracy over-tempe
A good PCB layout for the ISL6251HAZ-T should prioritize thermal management, noise reduction, and signal integrity. Place the IC near the battery, use a solid ground plane, and keep the switching node (SW) away from sensitive analog signals. Refer to the application note or evaluation board design for guidance.
Choose components based on the specific application requirements, such as output voltage, current, and frequency. Refer to the datasheet's component selection guidelines, and consider factors like inductor saturation, capacitor ESR, and voltage rating. You can also use online component selection tools or consult with a Renesas expert.
The ISL6251HAZ-T has a thermal pad that must be connected to a solid ground plane for heat dissipation. Ensure good airflow, use a heat sink if necessary, and avoid blocking the airflow around the IC. Monitor the junction temperature (TJ) and adjust the design as needed to prevent overheating.
The ISL6251HAZ-T has built-in OCP and SCP features. Set the OCP threshold using the OCSET pin, and ensure the SCP response time is adequate for your application. You can also add external protection circuits if needed, but be careful not to compromise the IC's internal protection features.
The ISL6251HAZ-T is a high-performance, high-current buck regulator with advanced features like adaptive output voltage positioning and a wide input voltage range. Compare the datasheet specifications, feature sets, and application notes to determine the best fit for your design. Consider factors like efficiency, noise, and package options when selecting a product.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6251HAZ-T Overview

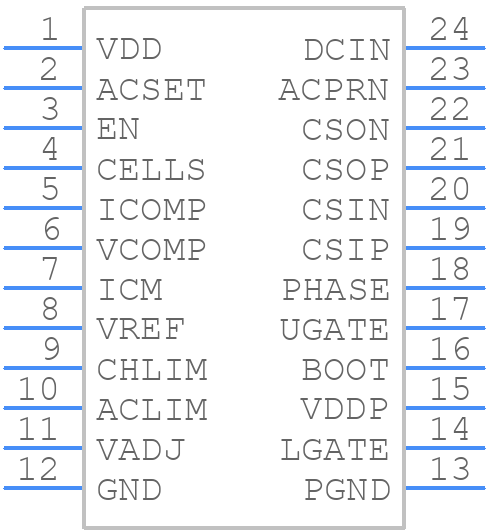

Use the download button to access the ISL6251HAZ-T schematic symbol, PCB footprint, and 3D model.
