Description:The ISL6251, ISL6251A is a highly integrated battery charger controller for Li-Ion/Li-Ion polymer batteries and NiMH batteries. High efficiency is achieved by a synchronous buck topology and the use of a MOSFET, instead of a diode, for selecting power from the adapter or battery. The low side MOSFET emulates a diode at light loads to improve the light load efficiency and prevent system bus boosting. The constant output voltage can be selected for 2, 3 and 4 series Li-Ion cells with 0. 5% accuracy over-tempe
The recommended layout for the ISL6251HAZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it is recommended to place the output capacitors close to the VOUT pin and to use a separate ground plane for the output stage.
To select the right inductor for the ISL6251HAZ, consider the following factors: inductance value, current rating, and DC resistance. The inductance value should be chosen based on the desired switching frequency and output voltage. The current rating should be higher than the maximum output current, and the DC resistance should be as low as possible to minimize losses.
The maximum junction temperature for the ISL6251HAZ is 150°C. It is recommended to keep the junction temperature below 125°C for optimal reliability and performance.
To troubleshoot issues with the ISL6251HAZ, start by checking the input voltage, output voltage, and current. Verify that the input voltage is within the recommended range and that the output voltage is within the desired range. Check for any signs of overheating, such as excessive temperature or burning smells. Use an oscilloscope to check for any unusual waveforms or oscillations. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, the ISL6251HAZ is suitable for high-reliability and high-temperature applications. It is qualified to the AEC-Q100 standard for automotive applications and has a junction temperature rating of up to 150°C. However, it is recommended to consult with Renesas Electronics Corporation for specific guidance on using the ISL6251HAZ in high-reliability or high-temperature applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6251HAZ Overview

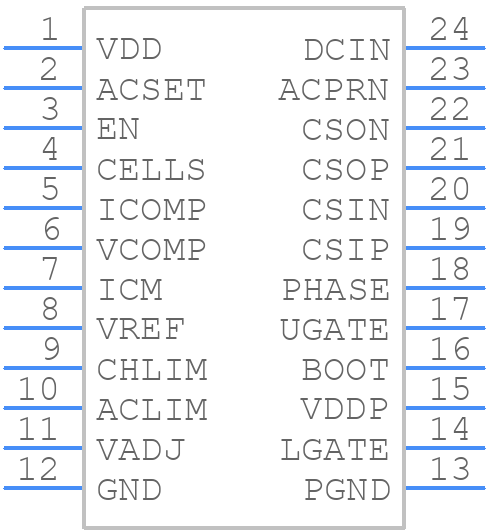

Use the download button to access the ISL6251HAZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62,
or try a keyword search, such as Power Management Circuits
